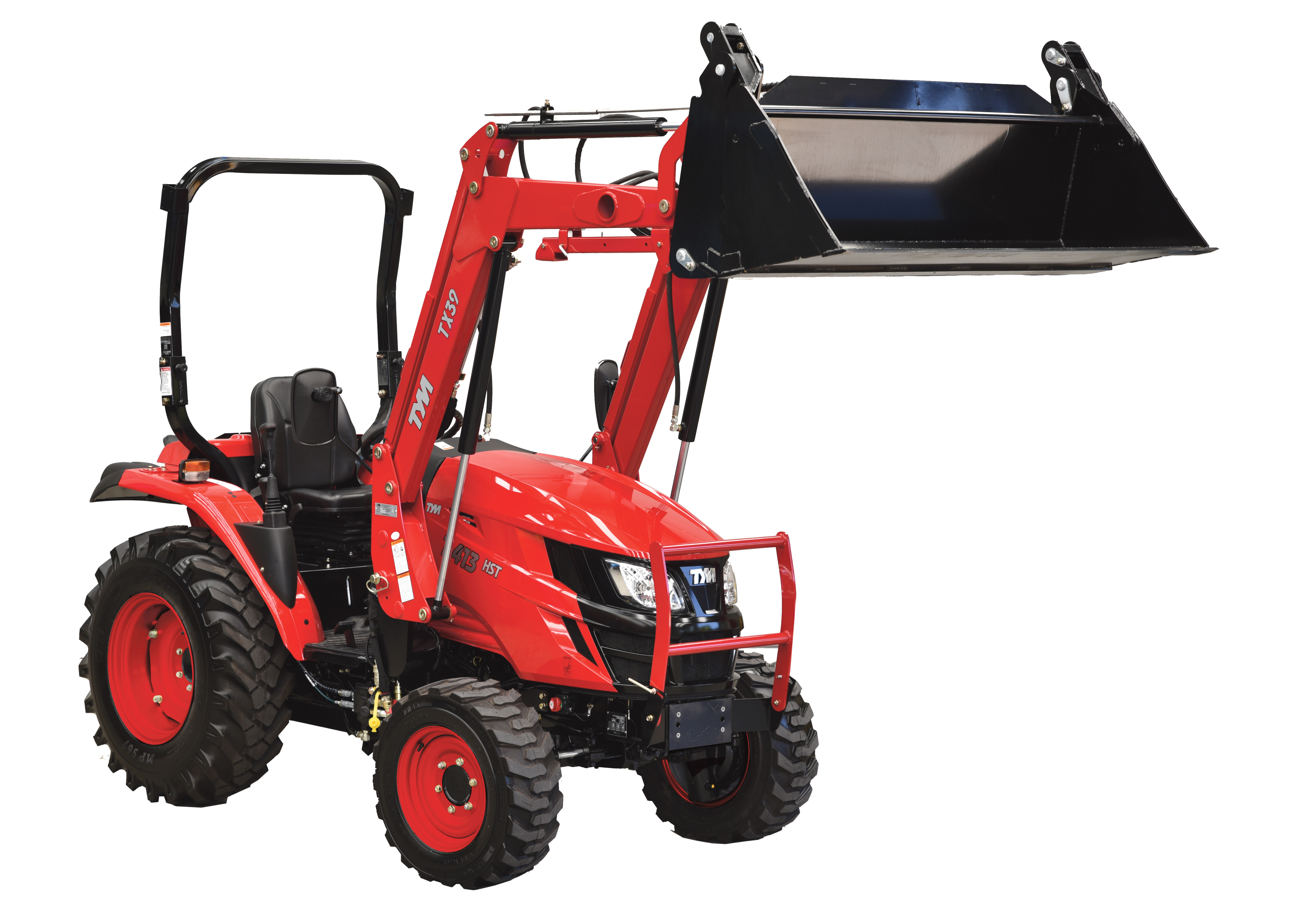

    TYM T413 Front End Loader

    Photograph for illustration purposes - standard specifications may not match those shown.


    FEATURES OF THE TYM 'T413' FRONT END LOADER

    CONSTRUCTION

    T413 Front End Loader Construction

    • Loader is a mechanical level lift design
    • The arms are made from tappered segments providing maximum strength with optimal pin weight
    • Pins are plated and greasable

    T413 Front End Loader Quick Detach

    • The loader is quick-detach to the tractor via simple quick release pins
    • Integrated stand is provided for loader storage on hard surfaces

    T503 Front End Loader Rail

    • The loader mounting frame is connected to the rear axle via a rail. This provides greater strength to the loader frame to avoid damage to the tractor when pushing heaped material

    FEATURES

    T413 Front End Loader Level Indicator Gauge

    • Bucket level indicator
    • Easy visibility of indicator rod from drivers seat when bucket edge is parallel to the ground

    T413 Front End Loader Grill Guard

    • Grille guard protection frame

    ATTACHMENT

    T503 Front End Loader Implement Hitch

    • Implement attached to the loader is via a Euro-Hitch connection allowing easy attachment of other tools and implements to the loader
    • Easy connection and disconnection of attachments from the loader via a single lever

    T413 Front End Loader 4 in 1 Bucket

    • The loader is fitted standard with 4-in-1 bucket providing 4 implements in one: conventional bucket scoop; grab for carrying; and blade and back blade for leveling
    • The 4-in-1 bucket needs a third hydraulic function and this is standard on the loader controls

    CONTROLS

    T413 Front End Loader Joystick

    • Loader is fitted with integrated joystick controls for the raise/lower and crowd/dump functions
    • The integrated joystick allows unobstructed access from either side of the tractor
    • The 4-in-1 bucket is controlled via a trigger button on the joystick to alleviate fatigue compared to thumb operated style controls
    • Joystick has a safety lock to prevent inadvertant operation
    TYM Loader Specifications Diagram

    Specifications and design are subject to change without notice. These specifications are a general guide.

    SPECIFICATIONS

    T413 4-in-1 Loader
    Loader model TX3500H
    Tractor models T413 HST ROPS, T413 CAB
    A. Maximum lift height (mm) 2,597
    B. Clearance with attachment level (mm) 2,332
    C. Clearance with attachment dumped - 45 degrees (mm) 1,864
    D. Reach at maximum height - 45 degrees (mm) 554
    E. Maximum dump angle (degrees) 42
    F. Reach with attachment on ground (mm) 1,792
    G. Attachment rollback angle (degrees) 35
    H. Digging depth below grade (mm) 111
    J. Overall height in carry position (mm) 1,550
    L. Depth of attachment - to back of inner shell (mm) 579
    M. Height of attachment (mm) 563
    N. Depth of attachment - to pivot pin (mm) 801
    Lift capacity to full height of pivot pins (kg) 926
    Breakout force at ground level, pivot pins (kg) 1,556
    Rated operating load - (counter weight on 3PL) (kg) 450 (350)

    Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.
