    TYM Tractors

    TS25 Front End Loader

      Loading...

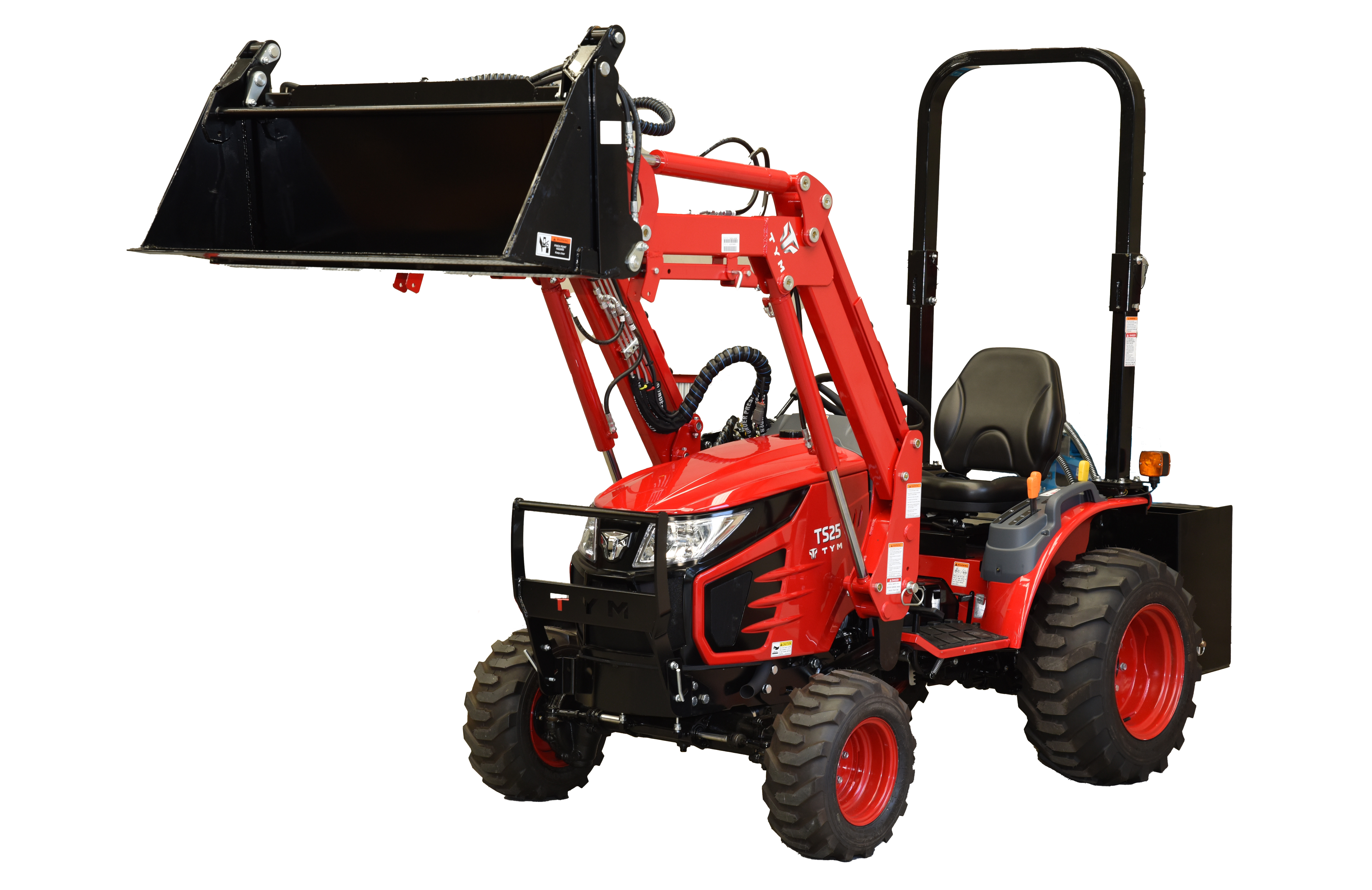

    TYM TS25 Front End Loader

    Photograph for illustration purposes - standard specifications may not match those shown.


    FEATURES OF THE TYM 'TS25' FRONT END LOADER

    CONSTRUCTION

    TS25 Front End Loader Construction

    • Loader is a mechanical level lift design
    • The arms are made from tappered segments providing maximum strength with optimal pin weight
    • Pins are plated and greasable

    TS25 Front End Loader Quick Detach

    • The loader is quick-detach to the tractor via simple quick release pins
    • Integrated stand is provided for loader storage on hard surfaces

    FEATURES

    TS25 Front End Loader Level Indicator Gauge

    • Bucket level indicator
    • Easy visibility of indicator rod from drivers seat when bucket edge is parallel to the ground
    • Grille guard protection frame

    ATTACHMENT

    TS255 Front End Loader Implement Hitch

    • Easy connection and disconnection of attachments from the loader via a single lever

    TS25 Front End Loader 4 in 1 Bucket

    • The loader is fitted standard with 4-in-1 bucket providing 4 implements in one: conventional bucket scoop; grab for carrying; and blade and back blade for leveling
    • The 4-in-1 bucket needs a third hydraulic function and this is standard on the loader controls

    CONTROLS

    • Loader is fitted with joystick controls for the raise/lower and crowd/dump functions
    • The joystick allows unobstructed access from either side of the tractor
    • The 4-in-1 bucket is controlled via a trigger button on the joystick to alleviate fatigue compared to thumb operated style controls
    • Joystick has a safety lock to prevent inadvertant operation
    TYM Loader Specifications Diagram

    Specifications and design are subject to change without notice. These specifications are a general guide.

    SPECIFICATIONS

    TS25 4-in-1 Loader
    Loader model TX25SL
    Tractor models TS25
    A. Maximum lift height (mm) 1,939
    B. Clearance with attachment level (mm) 1,758
    C. Clearance with attachment dumped - 45 degrees (mm) 1,315
    D. Reach at maximum height - 45 degrees (mm) 500
    E. Maximum dump angle (degrees) 55
    F. Reach with attachment on ground (mm) 1,390
    G. Attachment rollback angle (degrees) 45
    H. Digging depth below grade (mm) 115
    J. Overall height in carry position (mm) 1,206
    L. Depth of attachment - to back of inner shell (mm) 480
    M. Height of attachment (mm) 461
    N. Depth of attachment - to pivot pin (mm) 635
    Lift capacity to full height of pivot pins (kg) 681
    Breakout force at ground level, pivot pins (kg) 1172
    Rated operating load - (counter weight on 3PL) (kg) 300/200

    Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.
