    TYM Tractors

    T68 Utility Cabin Tractor

      Loading...

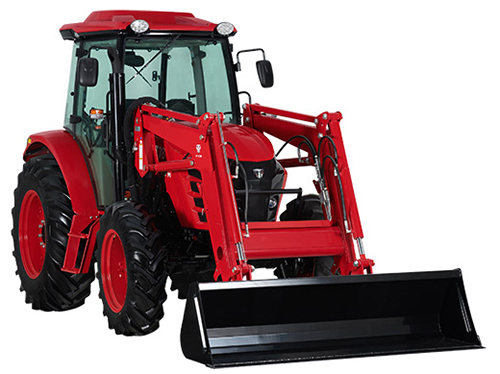

    TYM T68 Cabin

    Photograph for illustration purposes - standard specifications may not match those shown.

    FEATURES OF THE TYM 'T68' 4WD CABIN TRACTOR

    ENGINE

    T68 Deutz Engine

    • Powered by 67hp German built Deutz 4 cylinder Diesel engine
    • TCD 2.9L turbo charged intercooled engine
    • Tier4 with DPF without AdBlue
    • 4 cylinder producing 67hp at only 2200RPM for low rpm lugging power
    • Fuel efficient, reliable. powerful and rugged engine
    • The electronic engine governor holds the set engine rpm, under varying loads, delivering the maximum power of the engine when required, without rpm droops or spikes.
    • RPM memory recall
    • Dual dry element air cleaner for Australia's dusty conditions

    T68 Fuel Tank

    • 70 litre fuel tank capacity will provide for many working hours
    • Easy access from ground level

    DRIVELINE

    • The tractor weight of 2595kg is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is, in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation

    TYM T68 Power Shuttle

    • 24 forward / 24 reverse manual powershuttle allows you to shift forward and reverse without using a clutch
    • 18 speeds under 10km/h
    • Shuttle modulation control
    • 4 Ranges with range lever located to operator's left
    • 0-39.1km/h maximum speed
    • Creeper 0.4km/h

    TYM T68 Comfort Clutch

    • Comfort clutch on gear lever for gear changes without needing to operate the clutch

    TYM T68 Front Axle

    • The heavy duty front axle performs in tough working conditions and handles loads with ease
    • 440mm ground clearance

    TYM T68 Diff Lock

    • Rear axle with diff-lock for difficult traction situations
    • 4WD and the diff-lock provides better traction, control and performance

    TYM T68 Foot Throttle

    • Electronic organ-type pedal helps more delicate operation and relieves foot fatigue when driving long hours
    • Inboard wet disc brakes can be split for indpendent left and right side braking to assist turning in tight situations

    PTO, HYDRAULICS & LINKAGE

    TYM T68 Hydraulic lift system

    • Electronic 3 point linkage control
    • Control for the linkage and hydraulic remotes are on the right-hand side with Bosch hydraulic control system
    • Bosch technology enables easy control of attachments and hydraulic functions such as auto PTO, back-up, 4WD and sensitivity controls
    • 3-point linkage with 1937kg lifting capacity gives the tractor great versatility and range of applications

    TYM T68 External Hitch Controls

    • External button for ease of operating 3 point hitch out of cab on the left and right fenders
    • Easily attach and detach implements

    TYM T68 Hydraulic Remotes

    • 2 sets of hydraulic remotes
    • Rear swing drawbar
    • 3 point linkage with quick hitch ball ends
    • The PTO driveline is a simple and direct design for high efficiency and power
    • The PTO clutch is an independent oil immersed clutch pack for long life with simple push-button operation

    TYM T68 PTO

    • Auto-PTO function automatically disengages the PTO when the linkage is raised, and automatically re-engages when lowered; a great function that simplifies repeated row work and prevents implement damage
    • 540/540E/1000 RPM

    OPERATOR AREA

    TYM T68 Cabin Access

    • Wide door entry for easy access
    • Uncluttered flat floor without trip hazards
    • Rubber floor mat reduces noise and provides an easy to maintain surface
    • Left and right footsteps

    TYM T68 Cockpit Dash

    • Ergonomic design with easy to reach controls
    • Easy to read instrument panel
    • Digital forward speed display

    TYM T68 Adjustable Steering Wheel

    • Adjustable steering with integrated dash

    TYM T68 Hydraulic Levers

    • Ergonomic levers on the right side for easy operation. Simultaneously operate various attachments with convenience

    TYM T68 Suspension Seat

    • Comfortable suspension seat to reduce fatigue during long hours of operation. Experience a smooth ride and ergonomic design

    TYM T68_78 Bluetooth Stereo

    • Air-conditioned cabin with heating
    • Enjoy driving while listening to your favourite music or radio via the bluetooth stereo
    • Drink cooler/warmer
    • Wireless phone charger
    • USB charge ports
    • Internal and external rear vision mirrors

    TYM T68 Rear Cabin Lights

    • Front and rear windscreen wiper & washer
    • Adjustable see through sun visor
    • LED working lights on rear and sides
    • Cabin intake filters to cabin side
    • Rear external cabin work lights

    TYM T68 LED Headlamp

    • Front LED headlight stylishly integrated into the bonnet

    MAINTENANCE

    TYM T68 Easy Maintenance

    • Pop-up 1 piece bonnet
    • Easy access to all maintenance areas including battery
    • Lockable bonnet
    • 500hr service intervals
    • Radiator with removable screen to prevent clogging

    TYM T68 Battery Isolator

    • Donaldon power core filter
    • Battery isolator
    • DPF burn button on front dash

    OPTIONS

    FRONT END LOADER

    TYM T1003 Optional Front End Loader

    • Level lift front-end loader ideal for materials handling and utility work around the farm
    • Integrated joystick
    • Euro hitch with quick release
    • Tied to rear axle

    TYM T68 Optional Front End Loader Stand

    • Inbuilt loader parking stands

    FRONT WEIGHT

    TYM T68 Front Weights

    • Optional front weights available

    SPECIFICATIONS

    T68
    Engine Type
    Deutz
    Number of Cylinders/cc
    4/2925
    Engine Power (hp/kW)
    67 / 50
    Transmission Speeds
    24x24
    Forward / Reverse Shuttle Type
    Power Shuttle
    Number Speed Ranges
    4
    Speed Range at max rpm (km/h)
    0.4-39.1
    PTO Speeds (rpm)
    540 / 750 / 1000
    Independent Push Button PTO engagement
    Tick
    3-point Linkage Lift Capacity (kg)
    1937
    Number of Hydraulic Remotes
    2 sets
    Integrated Joystick Control for Front-end Loader
    Tick
    Weight - Tractor Only (kg)
    2595

    BROCHURE

    Click this link to download a brochure. Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.
    Follow this link to the manufacturer's website (TYM Corporation - Korea)

    Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
