    TYM Tractors

    T613 Utility Cabin Tractor


    TYM T613 Cabin

    Photograph for illustration purposes - standard specifications may not match those shown.

    FEATURES OF THE TYM 'T613' 4WD CABIN TRACTOR

    ENGINE

    T613 Yanmar Engine

    • Powered by 60hp TYM 4 cylinder Diesel engine
    • Quiet running engine certified to meet the stringent Tier III engine and noise emission standards
    • 2286cc engine, resulting in high torque for serious work
    • Dual dry element air cleaner for Australia's dusty conditions
    • 50 litre fuel tank located at footstep for easy access

    DRIVELINE

    T503 Transmission

    • The tractor weight of 1960kg is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation

    TYM T613 T613 controls

    • 12 speed transmission with synchromesh for easy forward and reverse directional changes
    • Shuttle shift with lever positioned under steering column
    • 3 Ranges with range lever located to operator's right
    • 0-33km/h maximum speed

    TYM T613 Front Axle

    • The heavy duty front axle performs in tough working conditions and handles loads with ease
    • A long wheel base and wide stance increases stability in all conditions

    TYM T613 Diff Lock

    • Rear axle with diff-lock for difficult traction situations
    • 4WD and the diff-lock provides better traction, control and performance
    • 4WD mode is controlled by a lever on the left hand side of the operator
    • Inboard wet disc brakes can be split for indpendent left and right side braking to assist turning in tight situations

    PTO, HYDRAULICS & LINKAGE

    • Control for the linkage and hydraulic remotes are on the right-hand side
    • 3-point linkage with quick attach lower link arms

    TYM T613 Linkage

    • 2 sets of double-acting hydraulic remotes
    • 3-point linkage with 1500kg lifting capacity gives the tractor great versatility and range of applications
    • Adjustable lower link stabiliser arms

    TYM T413 PTO

    • The PTO driveline is a simple and direct design for high efficiency and power
    • The PTO clutch is an independant oil immersed clutch pack for long life with simple push-button operation

    TYM T613 Linkage Remote

    • Auto-PTO function automatically disengages the PTO when the linkage is raised, and automatically re-engages when lowered; a great function that simplifies repeated row work and prevents implement damage

    OPERATOR AREA

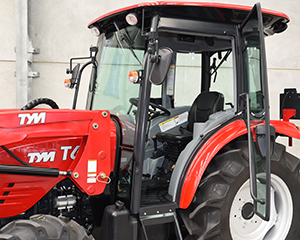

    TYM T613 Cabin Access

    • Uncluttered flat floor without trip hazards
    • Rubber floor mat reduces noise and provides an easy to maintain surface
    • Plenty of leg room

    TYM T613 Cockpit Dash

    • Ergonomic design with easy to reach controls
    • Easy to read instrument panel
    • Combination switch controls lights and indicators
    • Digital hour metre display

    TYM T413 Tiltable Steering Wheel

    • Tiltable steering wheel

    TYM T613 Cabin Integrated Joystick

    • Fully integrated joystick for control of front end loader with electric button for third function operation (when loader is fitted)

    TYM T613 Adjustable Suspension Seat

    • Adjustable suspension seat for comfort

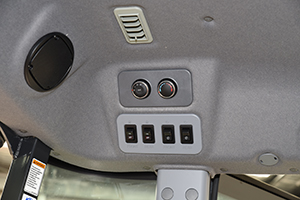

    TYM T613 Air-con cabin

    • Air-conditioned cabin with heating
    • Radio/MP3/USB/SD Player

    TYM T613 Cabin Rear working light

    • Rear windscreen wiper & washer
    • Rear external cabin work lights

    MAINTENANCE

    TYM T613 Easy Maintenance

    • Easy access to all maintenance areas including battery
    • Pop-up 1 piece bonnet
    • Radiator with removable screen to prevent clogging

    OPTIONS

    FRONT END LOADER

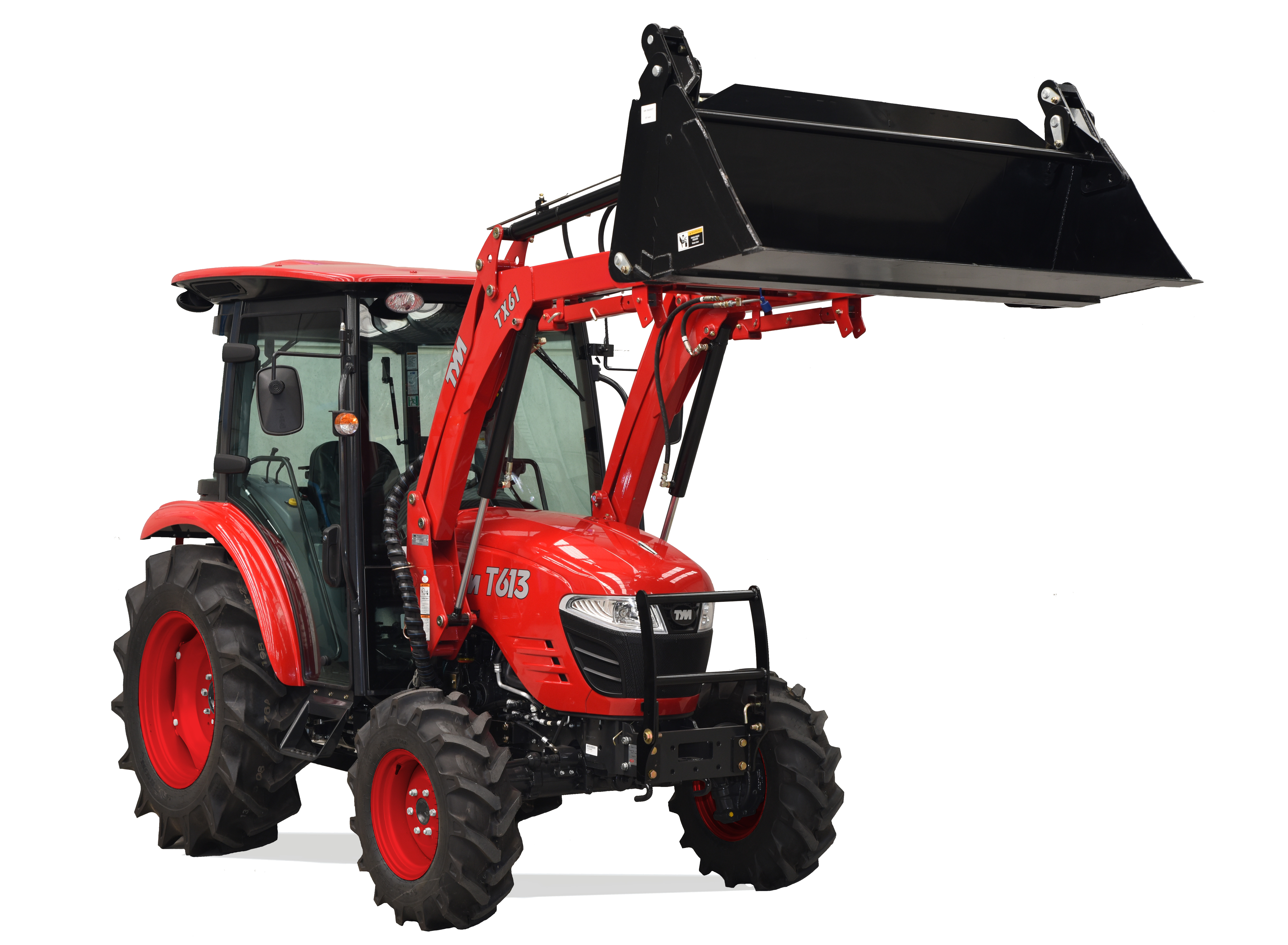

    TYM T613 Optinal Front End Loader

    • Level lift front-end loader ideal for materials handling and utility work around the farm

    TYM T613 Optinal Front End Loader

    TYRES

    TYM T413 Rear Tyre

    • Choice of agricultural, industrial or turf tyres

    SPECIFICATIONS

    T613 4WD CABIN
    Engine Type TYM
    Number of Cylinders 4
    Engine Power (hp/kW) 60/44.1
    Engine Torque (Nm)
    Transmission Type Synchro
    Number of speeds 12
    Number of Transmission Ranges 3
    Maximum Speed (km/h) 33
    PTO Speed (rpm) 540/540E
    Independent Push Button PTO engagement Tick
    3-point Linkage Lift Capacity (kg) 1500
    Number of Hydraulic Remotes 2 sets
    Air-conditioned cabin Tick
    Integrated Joystick Control for Front-end Loader Tick
    Weight - Tractor Only (kg) 1960

    BROCHURE

    Click this link to download a brochure. Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.
    Follow this link to the manufacturer's website (Tong Yang Moolsan - Korea)

    Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
