    TYM Tractors

    T613 Utility Tractor


    TYM T613

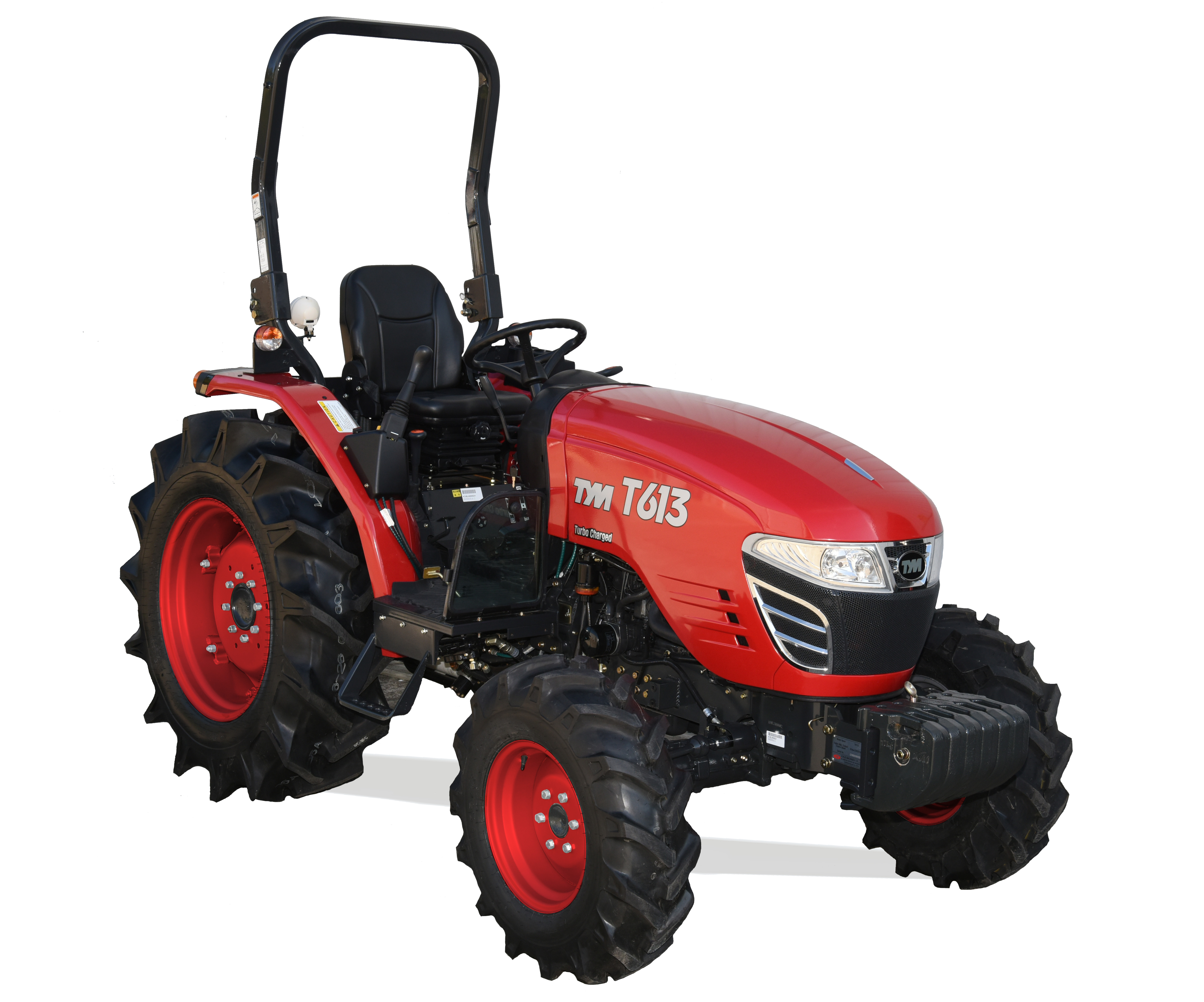

    Photograph for illustration purposes - standard specifications may not match those shown.

    FEATURES OF THE TYM 'T613' 4WD TRACTOR

    ENGINE

    T613 Yanmar Engine
    • Powered by 60hp TYM 4 cylinder Diesel engine
    • Quiet running engine certified to meet the stringent Tier III engine and noise emission standards
    • 2286cc engine, resulting in high torque for serious work
    • Dual dry element air cleaner for Australia's dusty conditions
    • 50 litre fuel tank capacity will provide for many working hours

    DRIVELINE

    T503 Transmission
    • The tractor weight of 1960kg (ROPS version) is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation
    • See optional front end loader for details
    TYM T613 T613 controls
    • 12 speed transmission with synchromesh for easy forward and reverse directional changes
    • Shuttle shift with lever positioned under steering column
    • 3 Ranges with range lever located to operator's right
    • 0-33km/h maximum speed
    TYM T613 Front Axle
    • The heavy duty front axle performs in tough working conditions and handles loads with ease
    • A long wheel base and wide stance increases stability in all conditions
    TYM T613 Diff Lock
    • Rear axle with diff-lock for difficult traction situations
    • 4WD and the diff-lock provides better traction, control and performance
    • 4WD mode is controlled by a lever on the left hand side of the operator
    • Inboard wet disc brakes can be split for indpendent left and right side braking to assist turning in tight situations

    PTO, HYDRAULICS & LINKAGE

    TYM T613 Linkage Remote
    • Control for the linkage and hydraulic remotes are on the right-hand side
    • 3-point linkage with quick attach lower link arms
    TYM T613 Linkage
    • 2 sets of double-acting hydraulic remotes
    • 3-point linkage with 1500kg lifting capacity gives the tractor great versatility and range of applications
    • Adjustable lower link stabiliser arms
    TYM T413 PTO
    • The PTO driveline is a simple and direct design for high efficiency and power
    • The PTO clutch is an independant oil immersed clutch pack for long life with simple push-button operation
    • Auto-PTO function automatically disengages the PTO when the linkage is raised, and automatically re-engages when lowered; a great function that simplifies repeated row work and prevents implement damage

    COCKPIT

    TYM T613 Cockpit Dash
    • Ergonomic design with easy to reach controls
    • Easy to read instrument panel
    • Combination switch controls lights and indicators
    • Digital hour metre display
    TYM T413 Tiltable Steering Wheel
    • Tiltable steering wheel
    TYM T613 Joystick
    • Fully integrated joystick for control of front end loader with electric button for third function operation (when fitted)
    • See optional front end loader for details
    TYM T613 Flat Platform
    • Uncluttered flat floor without trip hazards
    • Rubber floor mat reduces noise and provides an easy to maintain surface
    TYM T613 Adjustable Suspension Seat
    • Adjustable suspension seat for comfort
    TYM T613 Adjustable Suspension Seat
    • 2 post folding ROPS protection
    TYM T613 Easy Access 1 Piece Bonnet
    • Easy access to all maintenance areas including battery
    • Pop-up 1 piece bonnet
    • Radiator with screen to prevent clogging

    OPTIONS

    FRONT END LOADER

    TYM T413 Optinal Front End Loader
    • Level lift front-end loader ideal for materials handling and utility work around the farm
    • Euro hitch
    • See this link for details and specifications on the optional front end loader

    TYRES

    TYM T413 Rear Tyre
    • Choice of agricultural, industrial or turf tyres

    SPECIFICATIONS

    T613 4WD
    Engine Type TYM
    Number of Cylinders 4
    Engine Power (hp/kW) 60/44.1
    Engine Torque (Nm)
    Transmission Type Synchro
    Number of speeds 12
    Number of Transmission Ranges 3
    Maximum Speed (km/h) 33
    PTO Speed (rpm) 540/540E
    Independent Push Button PTO engagement Tick
    3-point Linkage Lift Capacity (kg) 1500
    Number of Hydraulic Remotes 2 sets
    2 Post folding ROPS Tick
    Integrated Joystick Control for Front-end Loader Tick
    Weight - Tractor Only (kg) 1960

    BROCHURE

    Click this link to download a brochure. Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.
    Follow this link to the manufacturer's website (Tong Yang Moolsan - Korea)

    Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
