The tractor weight of 1710 kg (ROPS version) is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is, in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation.

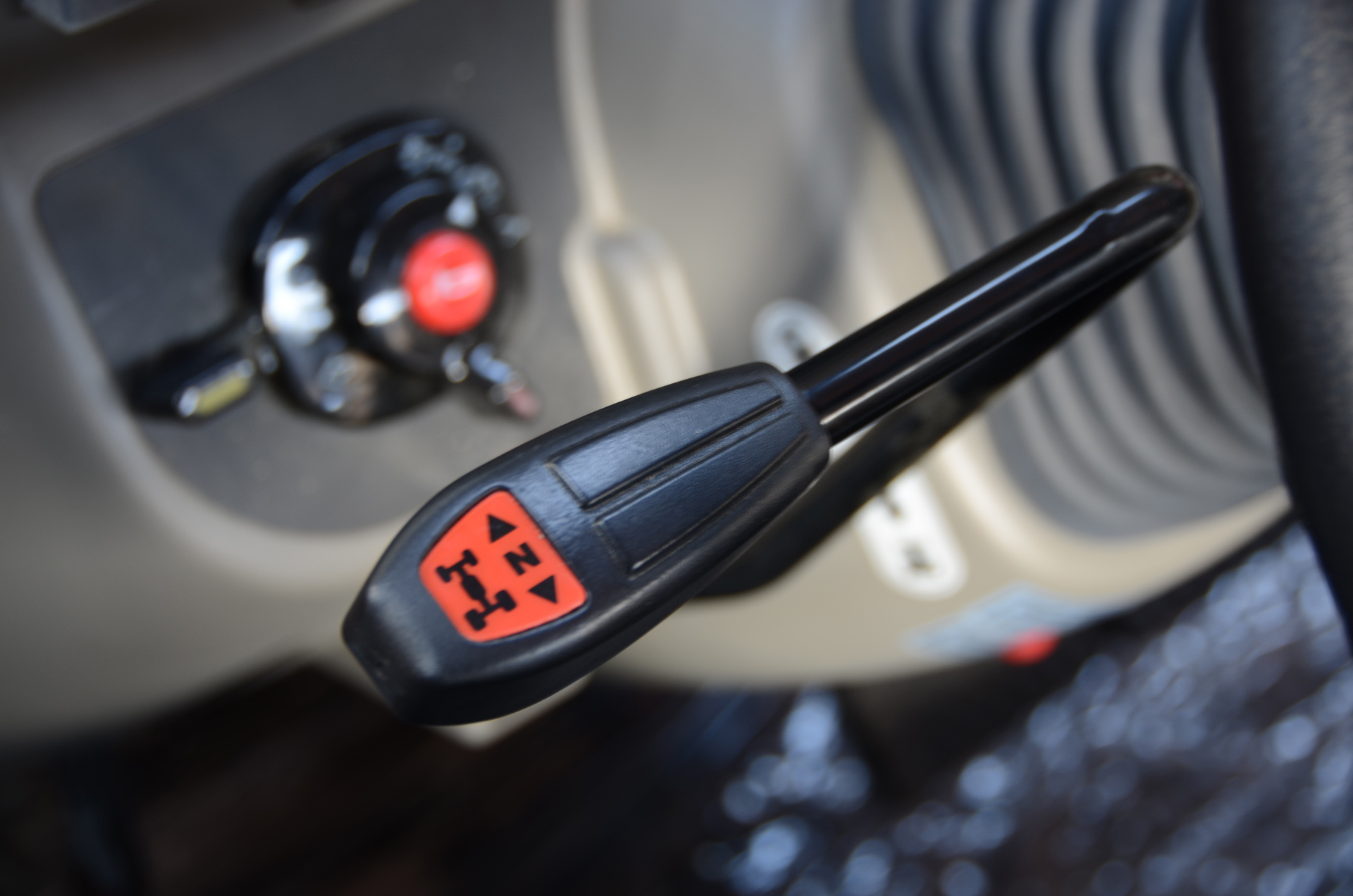

The Synchro Shuttle lever is positioned on the left-hand side for easy direction changes, making it ideal for loader work. With 16 speeds from 0.6 to 30 km/h, and 4 gears across 4 ranges including creeper speeds, it delivers precise control for heavy-duty tasks.

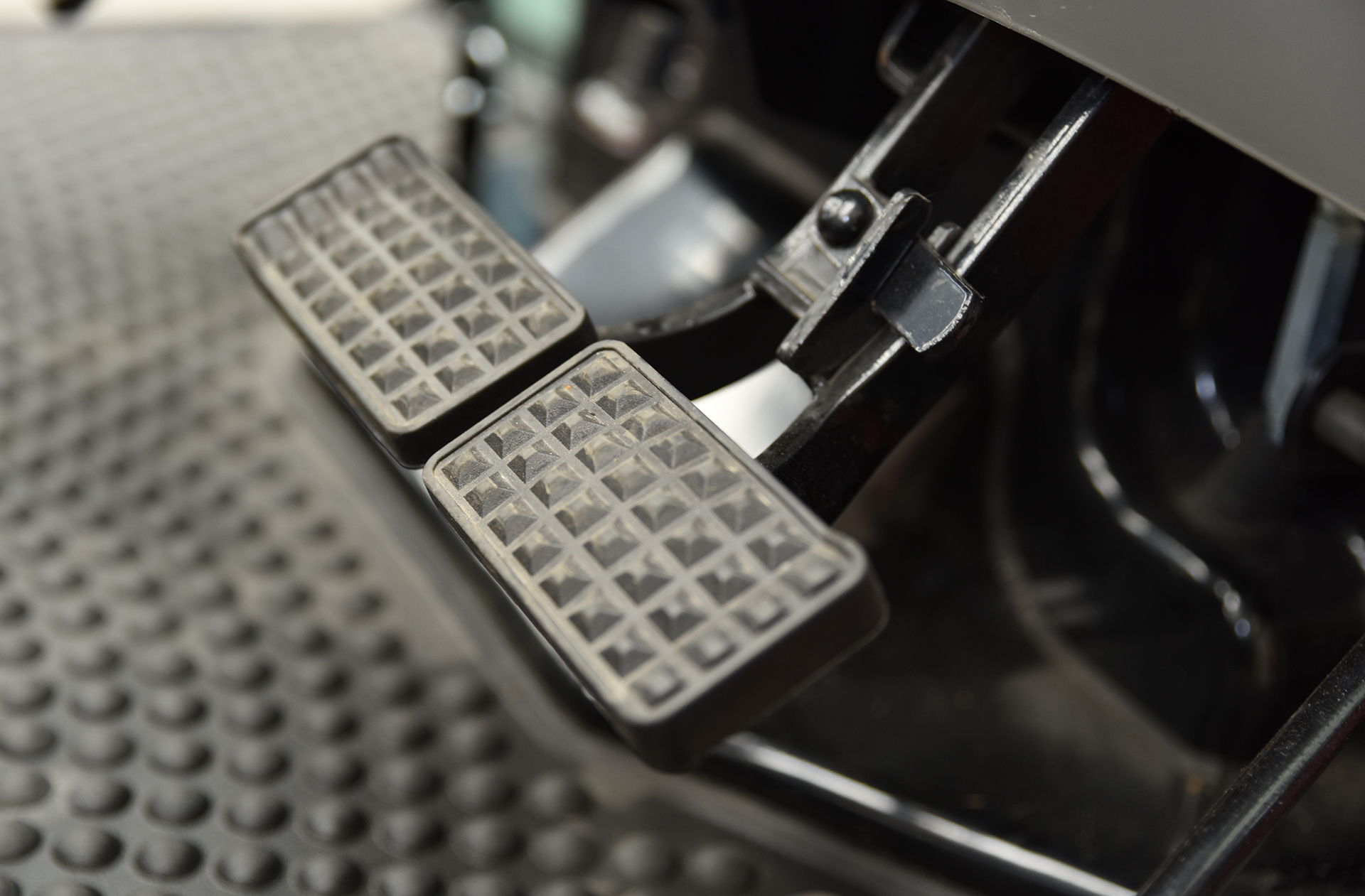

Inboard wet disc brakes can be split for indpendent left and right side braking to assist turning in tight situations.

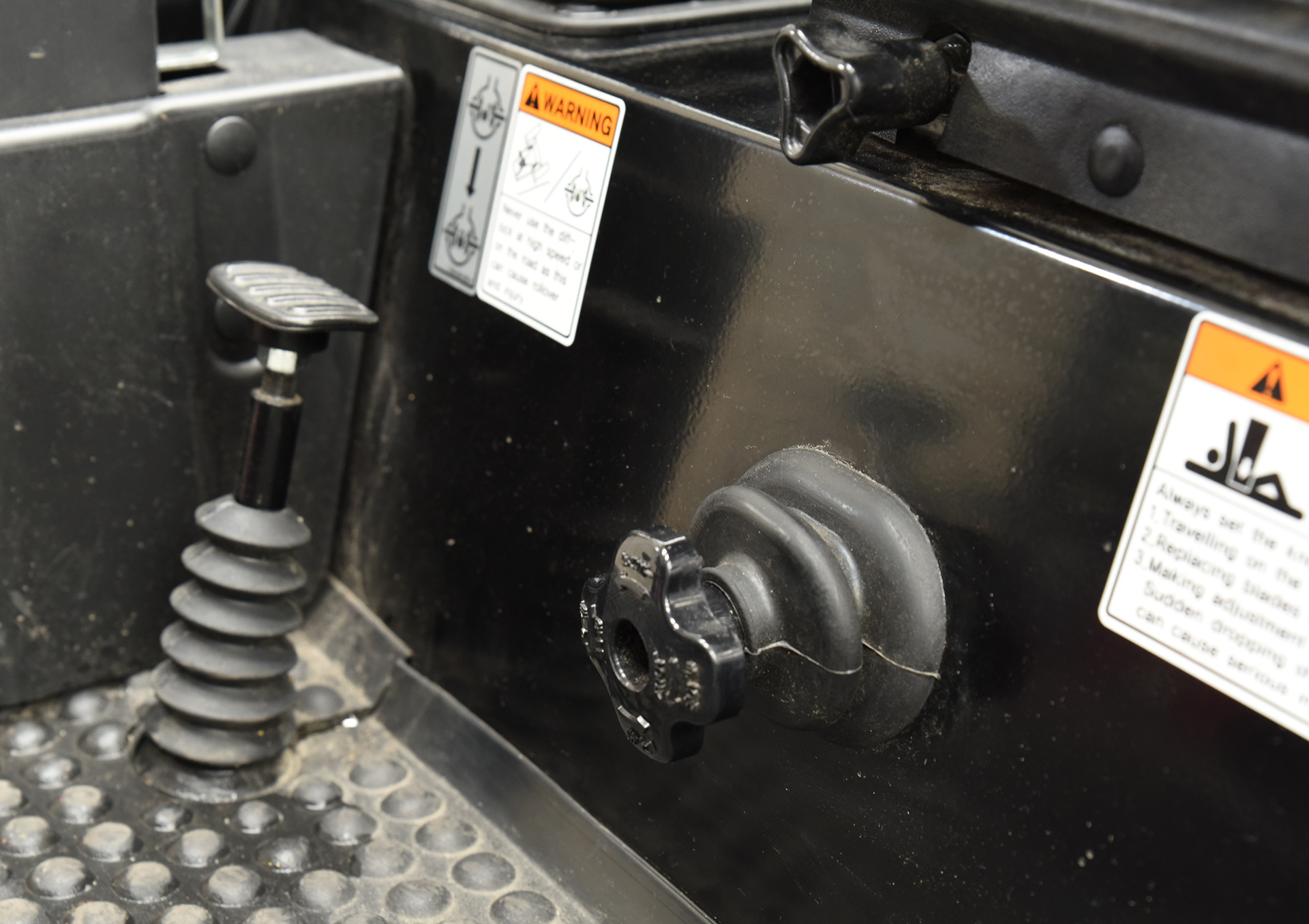

The heavy duty front axle performs in tough working conditions and handles loads with ease. A long wheel base and wide stance increases stability in all conditions. Rear axle with diff-lock for difficult traction situations.

4WD and the diff -lock provides better traction, control and performance. 4WD mode is controlled by a lever on the left hand side of the operator.

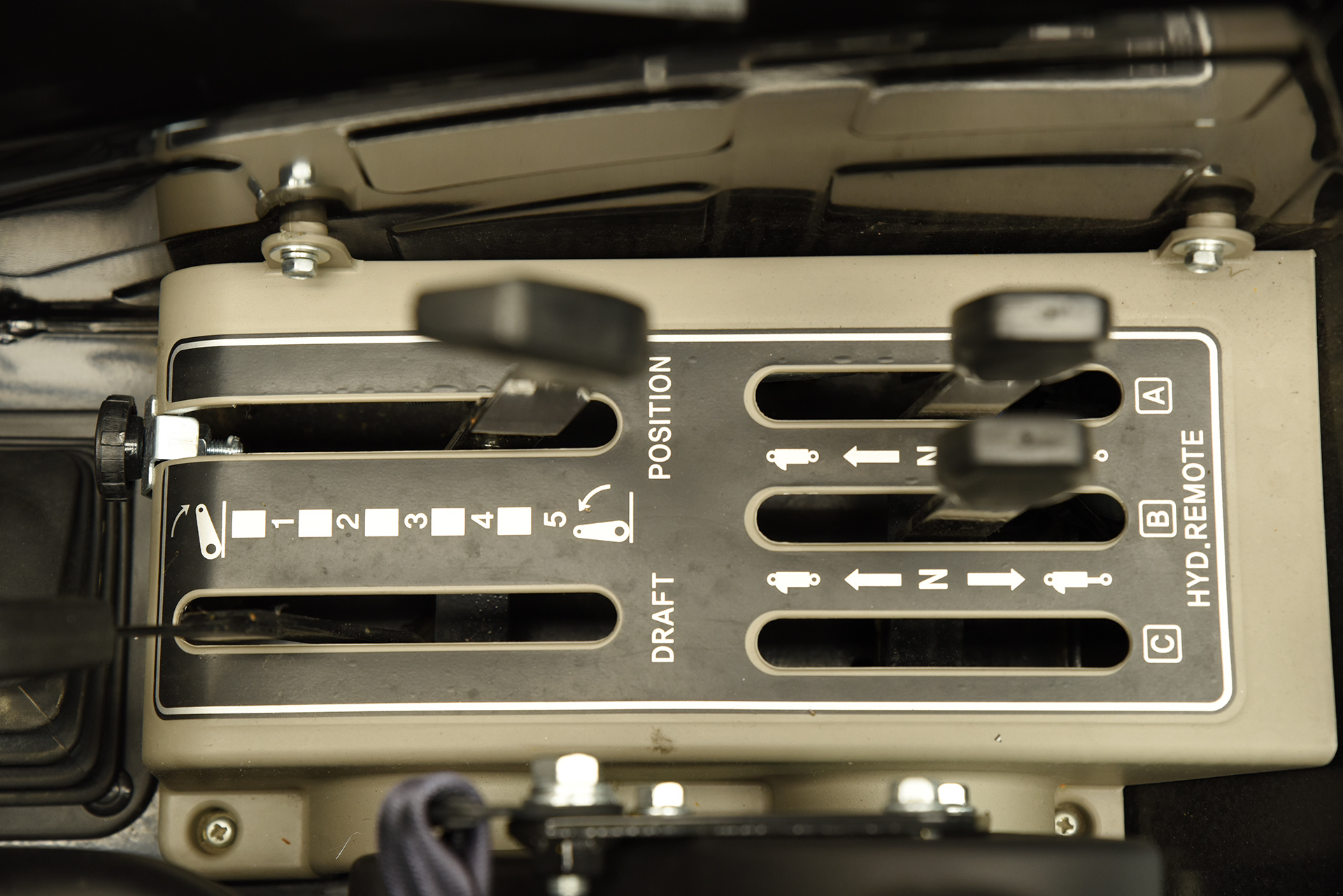

Control for the linkage and hydraulic remotes are on the right-hand side.
The 3-point linkage has position and draft control. Draft control automatically lifts the ground-engaging implement from the soil when excessive load is experienced. Hydraulic remotes are ideal for the operation of log splitters, post hole augers and a wide range of implements.

2 sets of double-acting hydraulic remotes. Category 1 3-point linkage with 1503 kg lifting capacity gives the tractor great versatility and range of applications. Telescopic extendable lower link arms for easy implement connections.

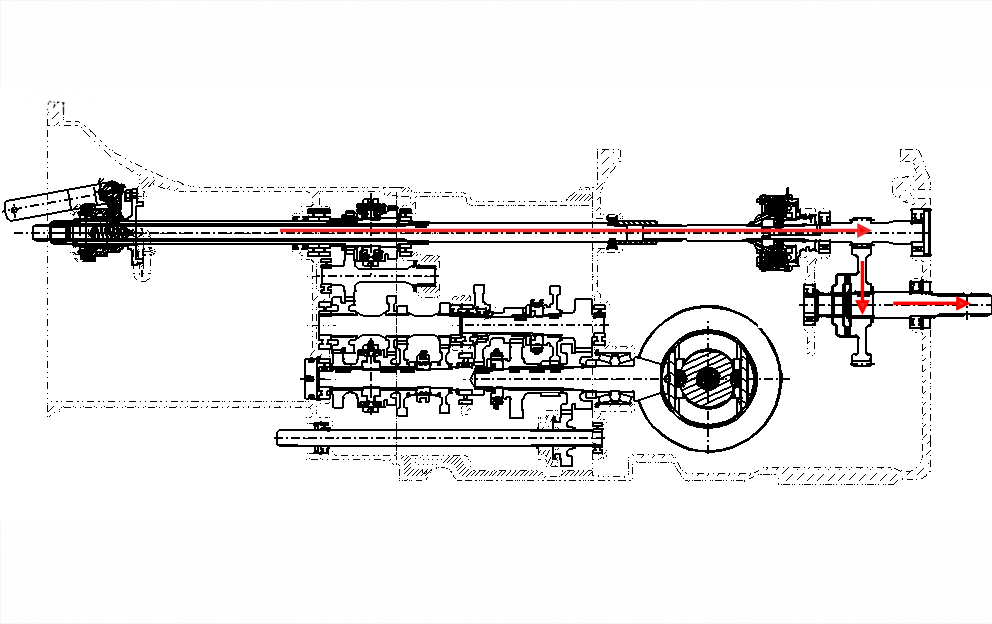

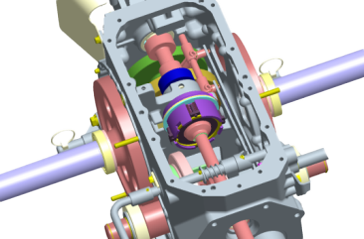

The PTO driveline is a simple and direct design for high efficiency and power. The PTO clutch is an independent oil immersed clutch pack for long life with simple push-button operation.

Auto-PTO function automatically disengages the PTO when the linkage is raised, and re-engages when lowered; a great function that simplifies repeated row work and prevents implement damage.

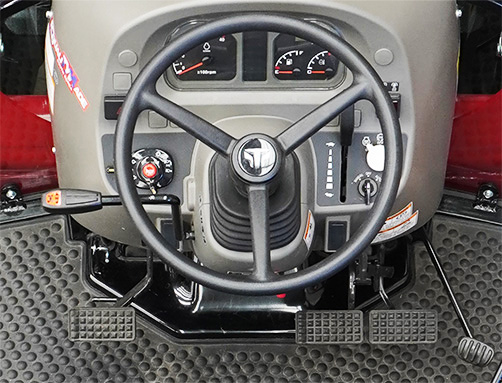

Ergonomic design with easy to reach controls. Easy to read instrument panel. Combination switch controls lights and indicators. Digital hour metre display. PTO On/Off Switch.

Tiltable steering wheel allows operators to adjust the angle for optimal comfort and control.
This ergonomic design enhances ease of operation, reduces fatigue during long hours of use, and accommodates operators of different sizes.

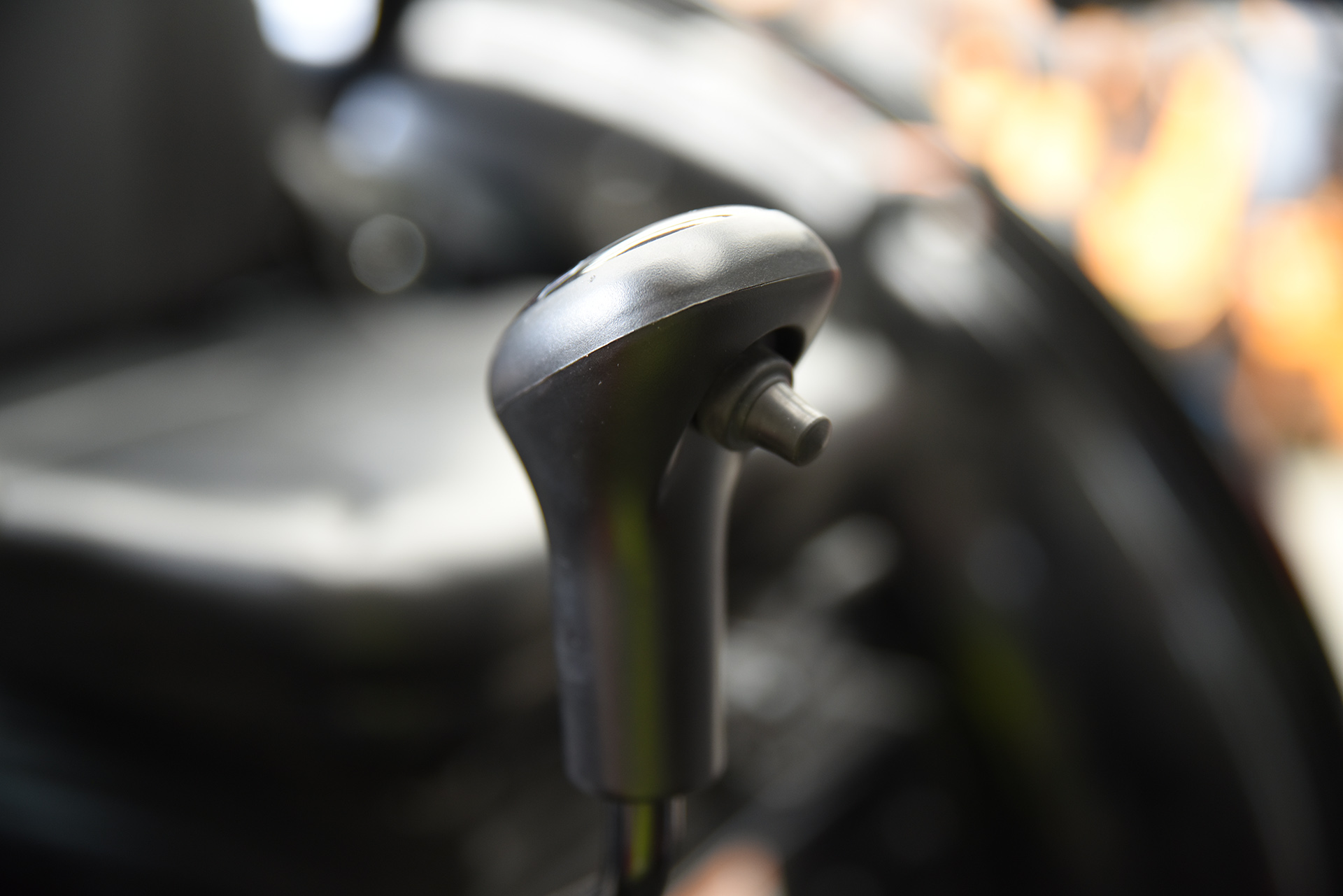

Fully integrated joystick for control of front end loader with electric button for third function operation (when fitted).

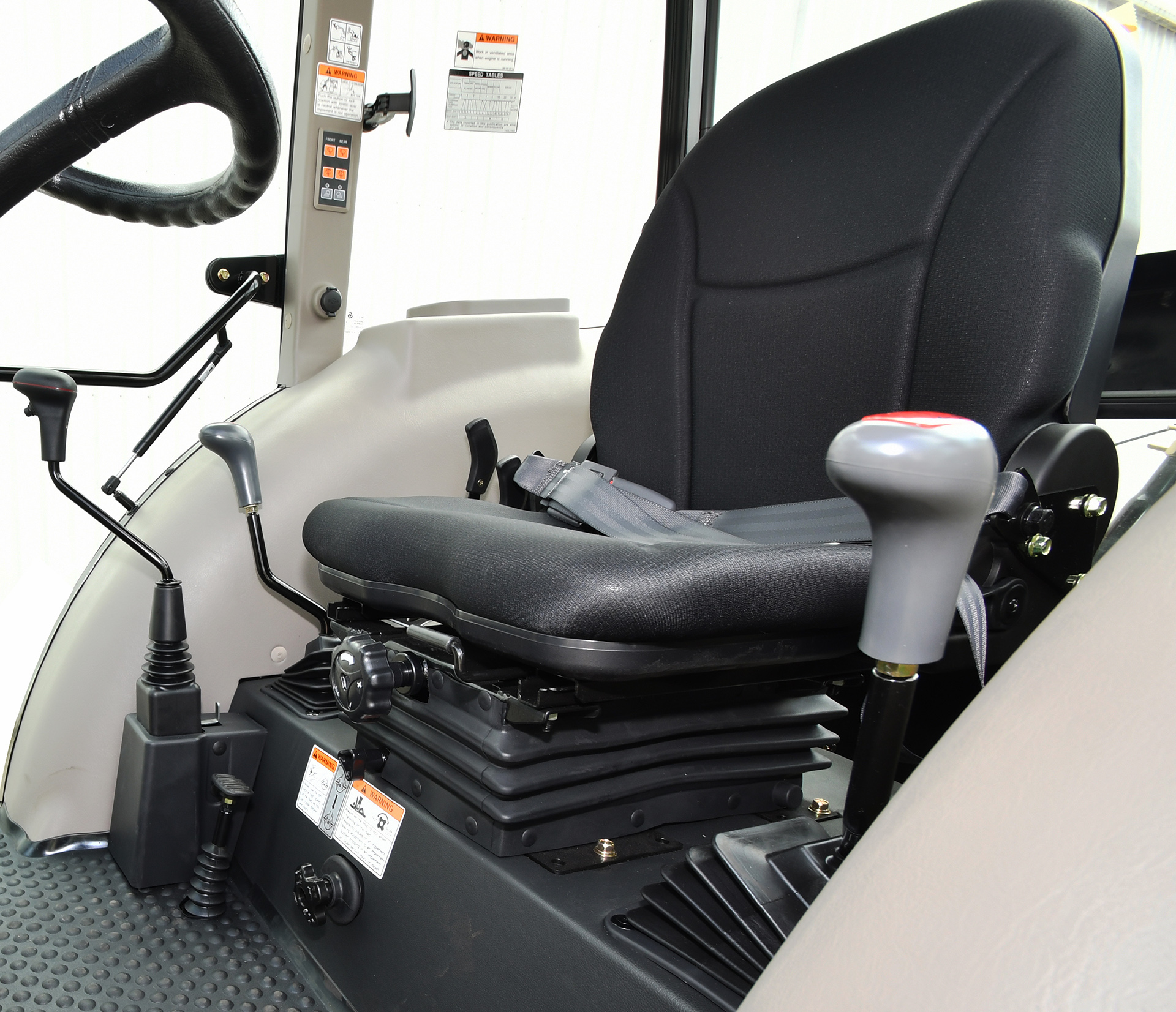

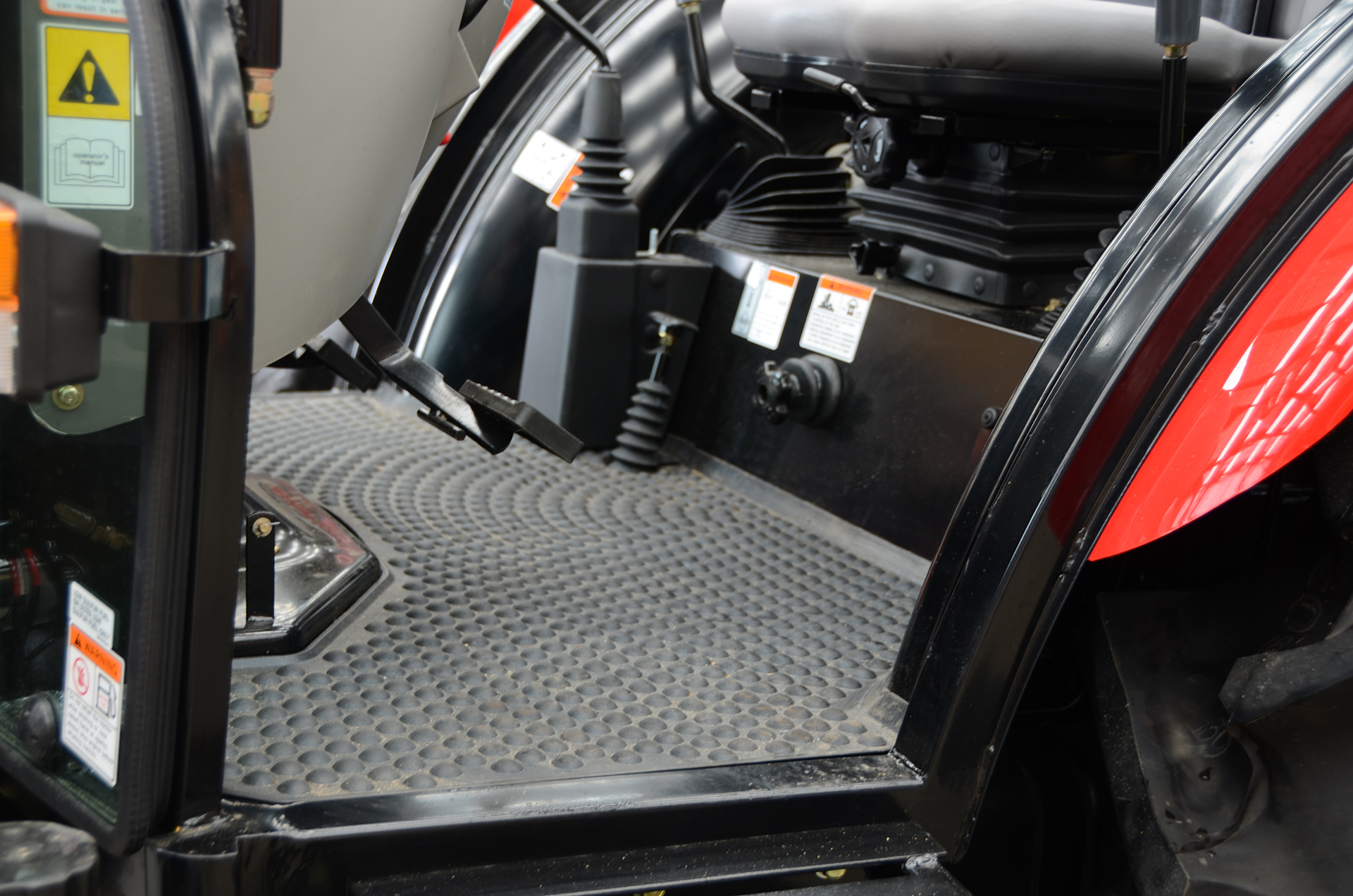

Wide distance between rear mudguard and dash panel provides easy access on and off the tractor. Uncluttered flat floor without trip hazards is the largest surface area in its class. Rubber floor mat reduces noise and provides an easy to maintain surface. The adjustable suspension seat provides superior comfort by absorbing shocks and vibrations during operation. This results in a more comfortable ride and less driver fatigue.

The adjustable suspension seat provides superior comfort by absorbing shocks and vibrations during operation. This results in a more comfortable ride and less driver fatigue.

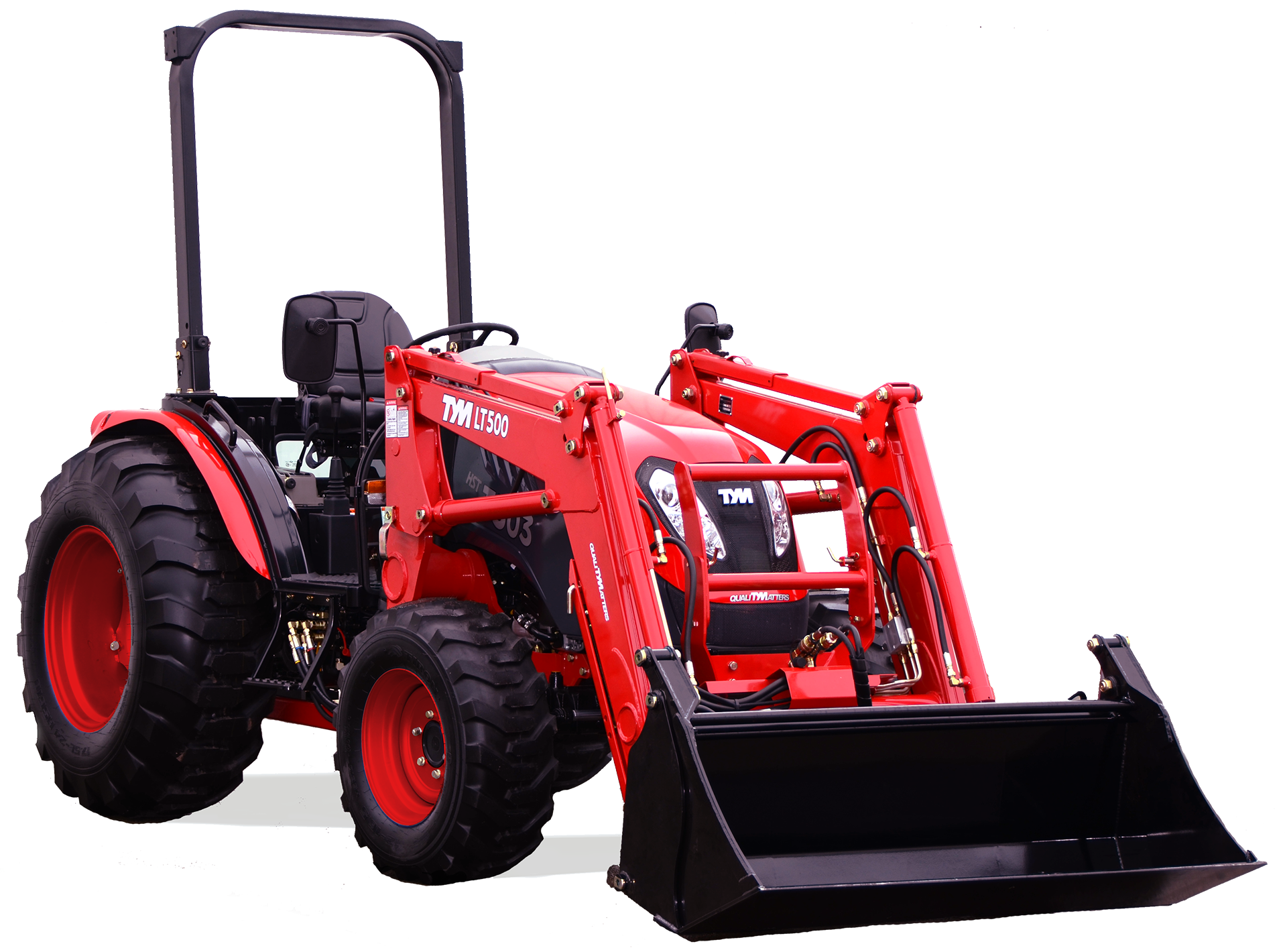

Front end loader

Level lift front-end loader ideal for materials handling and utility work around the farm. Full details & specifications on the optional front end loader.

Tyres

A choice of agricultural, industrial, or turf tyres, the T503 can be tailored to suit a variety of working conditions - from soft soil and paddocks to hard surfaces and lawns - ensuring optimal traction and minimal ground disturbance.
