    TYM Tractors

    T503 HST Cabin Utility Tractor

      Loading...

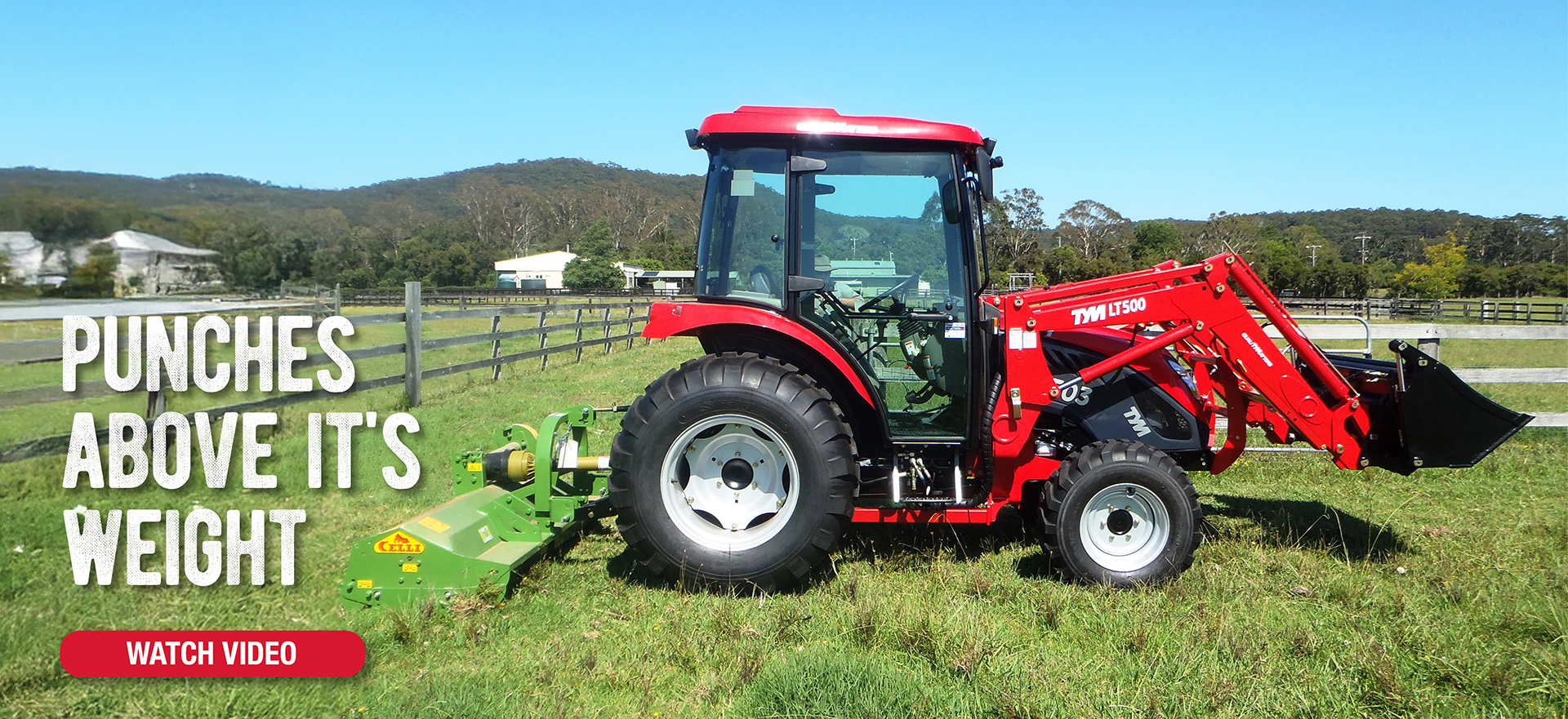

    TYM T503 HST Cabin Tractor

    Photograph for illustration purposes - standard specifications may not match those shown.

    FEATURES OF THE TYM 'T503' HST TRACTOR

    ENGINE

    Perkins Engine
    • Powered by 50hp Perkins naturally aspirated 4 cylinder water-cooled Diesel engine
    • Perkins Diesel is a global engine manufacturer of quality, giving you the confidence in reliability and after-sales support
    • Engine certified to meet the stringent Tier III engine and noise emission standards
    Load sensing control
    • Load sensing control prevents engine from stalling during heavy loads
    • Cruise control with increase/decrease button
    • 2216cc engine with 142.7Nm of torque at 1800rpm
    • A generous engine capacity of 2216cc, resulting in high torque for serious work
    • Dual dry element air cleaner for Australia's dusty conditions
    • A large capacity 60 litre fuel tank for many working hours between refueling

    DRIVELINE

    T503 Transmission T503 Transmission
    • The tractor weight of 1710kg (ROPS version) is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is, in part a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation
    • See optional front end loader for details

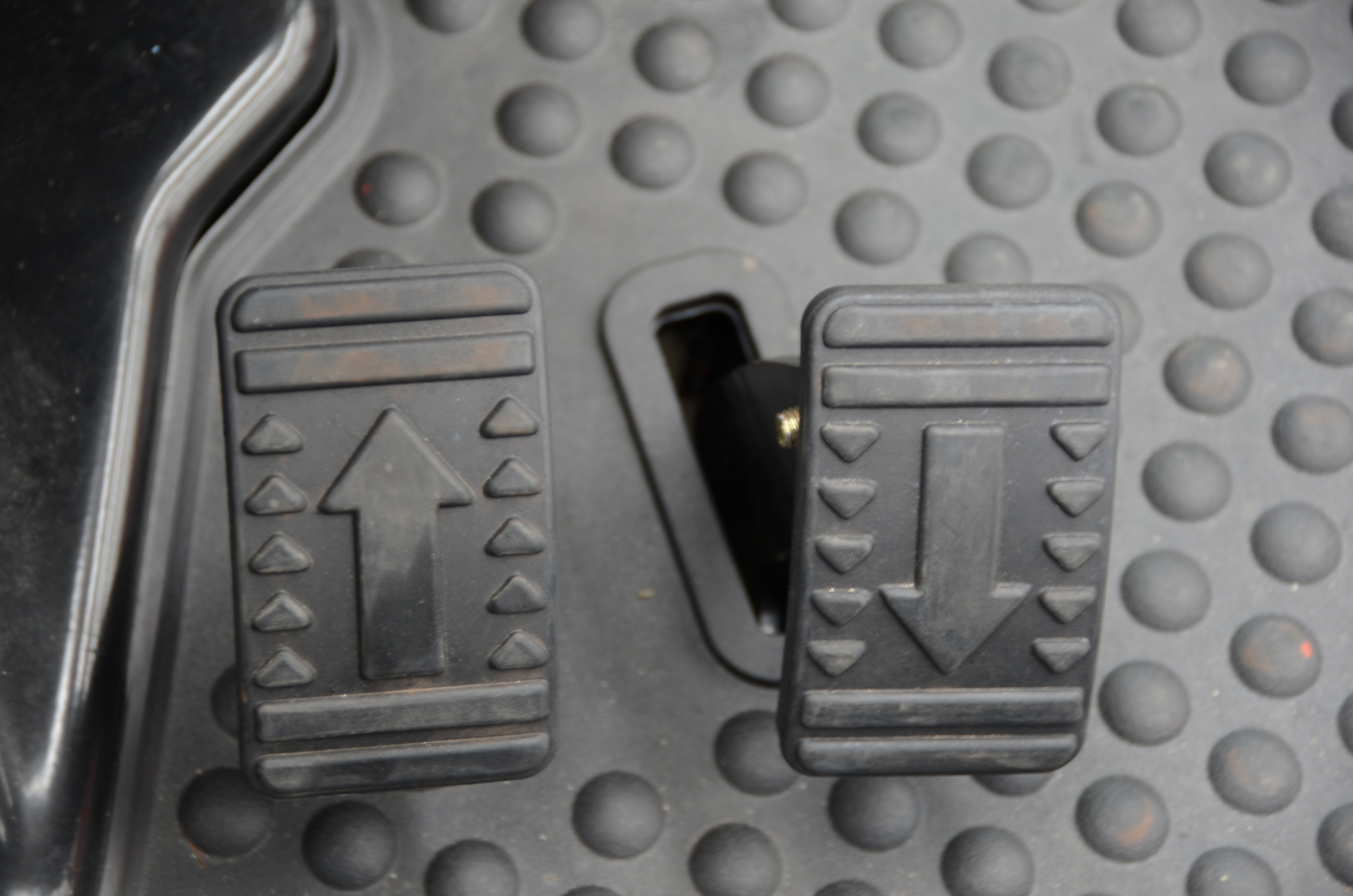

    TYM T503 HST Pedals
    • Three (3) range Hydrostatic transmission gives infinitely variable driving speed from stationary to 26 km/h in forward or reverse direction
    • Hydrostatic drive controlled by Independent Forward and Reverse pedals for easy simple operation
    • Ergonomic side by side foot control reduces fatigue and errors
    • Mode sensitivity switch allows the operator to change HST pedal response time through 3 different modes
    TYM T503 Front Axle
    • The heavy duty front axle performs in tough working conditions and handles loads with ease
    • A long wheel base and wide stance increases stability in all conditions
    TYM T503 Manual Diff Lock
    • Rear axle with diff-lock for difficult traction situations
    • 4WD and the diff-lock provides better traction, control and performance
    • 4WD mode is controlled by a lever on the left hand side of the operator

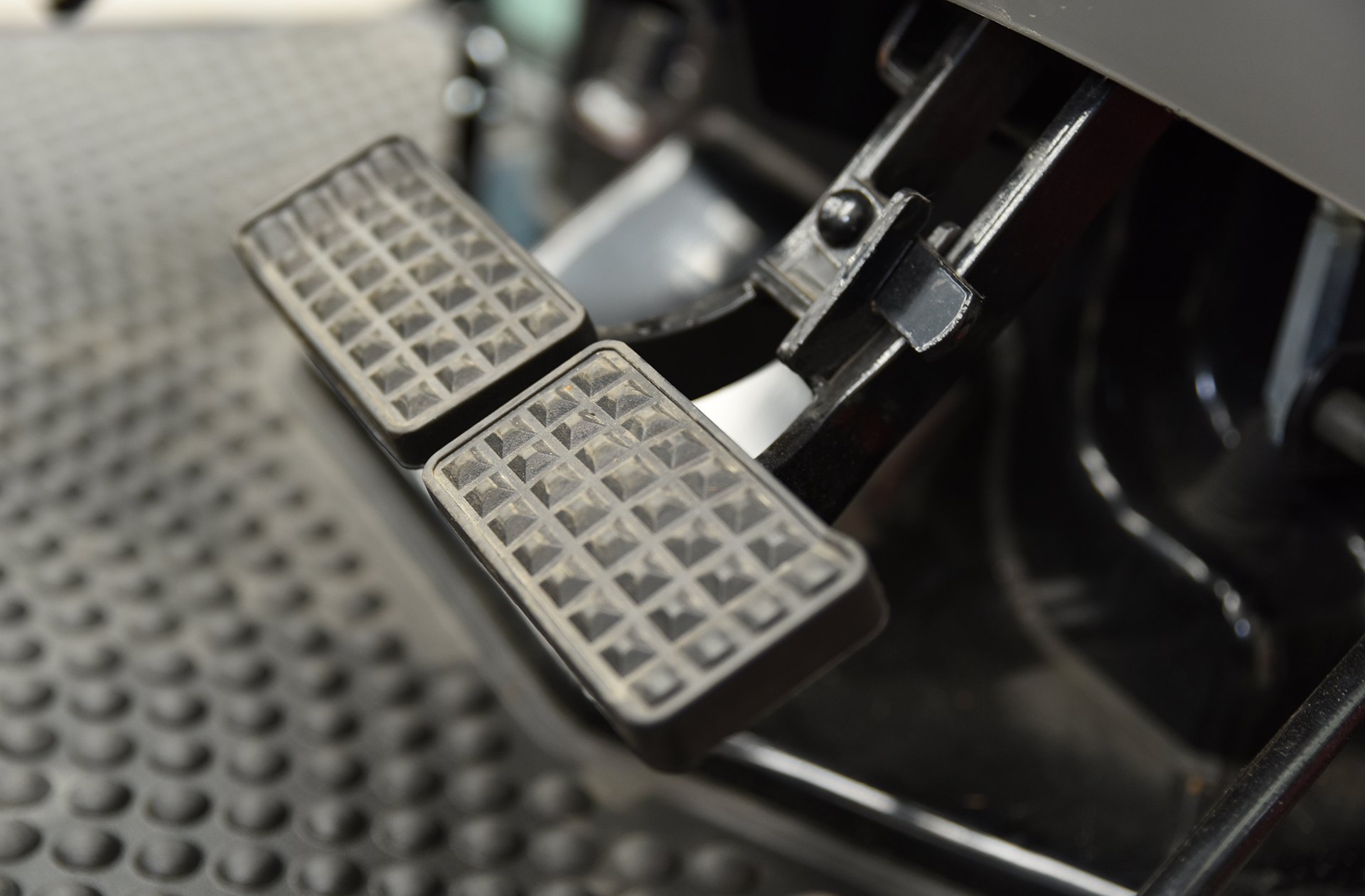

    TYM T503 Turning Brakes
    • Inboard wet disc brakes can be split for independent left and right side braking to assist turning in tight situations

    PTO, HYDRAULICS & LINKAGE

    TYM T503 Remote Controls
    • Controls for the linkage and hydraulic remotes are on the right-hand side
    • The 3-point linkage has postition and draft control
    • Draft control automatically lifts the ground-engaging implement from the soil when excessive load is experienced
    • Hydraulic remotes are ideal for the operation of log splitters, post hole augers and a wide range of implements
    TYM T503 Rear
    • 2 sets of double-acting hydraulic remotes
    • Category 1 3-point linkage with 1503kg lifting capacity gives the tractor great versatility and range of applications
    • Telescopic extendable lower link arms for easy implement connections
    TYM T503 PTO TYM T503 PTO
    • The PTO driveline is a simple and direct design for high efficiency and power
    • The PTO clutch is an independent oil immersed clutch pack for long life with simple push-button operation
    • Auto-PTO function automatically disengages the PTO when the linkage is raised, and automatically re-engages when lowered; a great function that simplifies repeated row work and prevents implement damage

    OPERATOR AREA

    TYM T503 Operator Area
    • Air-conditioned cabin with sunroof and CD player
    • Ergonomic design with easy to reach controls
    • Easy to read instrument panel
    • Side mounted cabin air intake filters
    • Digital hour meter display
    • PTO On/Off Switch
    • Side opening windows
    • Front and rear windscreen washers and wipers
    • Front and rear cabin mounted working lights
    TYM T503 Tiltable Steering Wheel
    • Tiltable steering wheel
    T503 Joystick
    • Fully integrated joystick for control of front end loader with electric button for third function operation (when fitted)
    • See optional front end loader for details
    TYM T503 Manual Floor

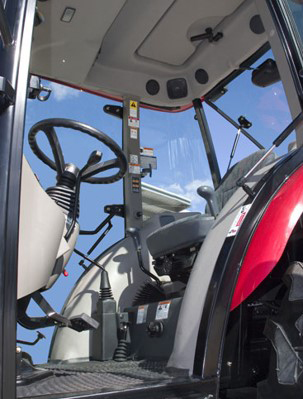

    • Wide distance between rear mudguard and dash panel provides easy access on and off the tractor
    • Uncluttered flat floor without trip hazards is the largest surface area in its class
    • Rubber floor mat reduces noise and provides an easy to maintain surface
    TYM T503 Adjustable Suspension Seat
    • Adjustable suspension seat for comfort

    OPTIONS

    FRONT END LOADER

    TYM T503 Optinal Front End Loader
    • Level lift front-end loader ideal for materials handling and utility work around the farm or property
    • Full details & specifications on the optional front end loader

    TYRES

    TYM T503 Rear Tyre
    • Choice of agricultural, industrial or turf tyres

    SPECIFICATIONS

    T503 HST CABIN
    Engine Type Perkins
    Number of Cylinders 4
    Engine Power (hp/kW) 50 / 37
    Engine Torque (Nm) 142.7
    Transmission Type HST
    Number Speed Ranges 3
    Maximum Speed (km/h) 31.7
    PTO Speed (rpm) 540
    Independent Push Button PTO engagement Tick
    3-point Linkage Lift Capacity (kg) 1503
    Number of Hydraulic Remotes 2 sets
    Integrated Joystick Control for Front-end Loader Tick
    Weight - Tractor Only (kg) 1900

    BROCHURE

    Click this link to download a brochure. Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.
    Follow this link to the manufacturer's website (TYM Corporation - Korea)

    Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
