    TYM Tractors

    T265 Compact Tractor


    24.5hp hydrostatic transmission compact tractor.

    TYM T265 Tractor

    Photograph for illustration purposes - standard specifications may not match those shown.

    FEATURES OF THE TYM 'T265' TRACTOR

    ENGINE

    Mitsubishi Engine
    • Powered by 24.5hp TYM naturally aspirated 3 cylinder water-cooled Diesel engine.
    • TYM Diesel engine, a Tier 4 engine producing plenty of torque at low enging RPM providing outstanding in field performance.
    • Engine certified to meet the stringent Tier 4 engine and noise emission standards.
    • Dual dry element air cleaner for Australia's dusty conditions.
    • A generous 25 litre fuel tank for many working hours between refueling.

    DRIVELINE

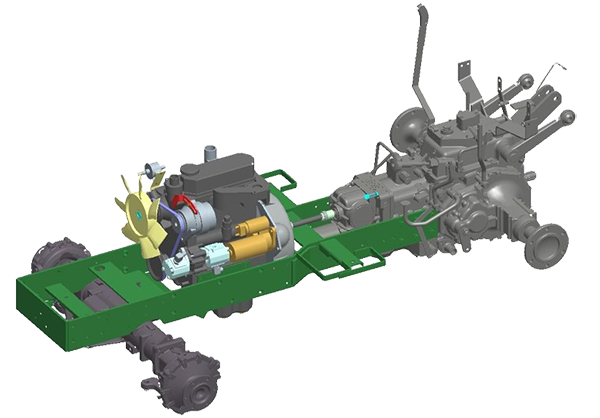

    T313 Chassis
    • The tractor weight of 865kg is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation
    • The high efficiency two range (2) hydrostatic transmission gives infinitely variable drive speed from stationary to 16km/h in the forward and reverse direction

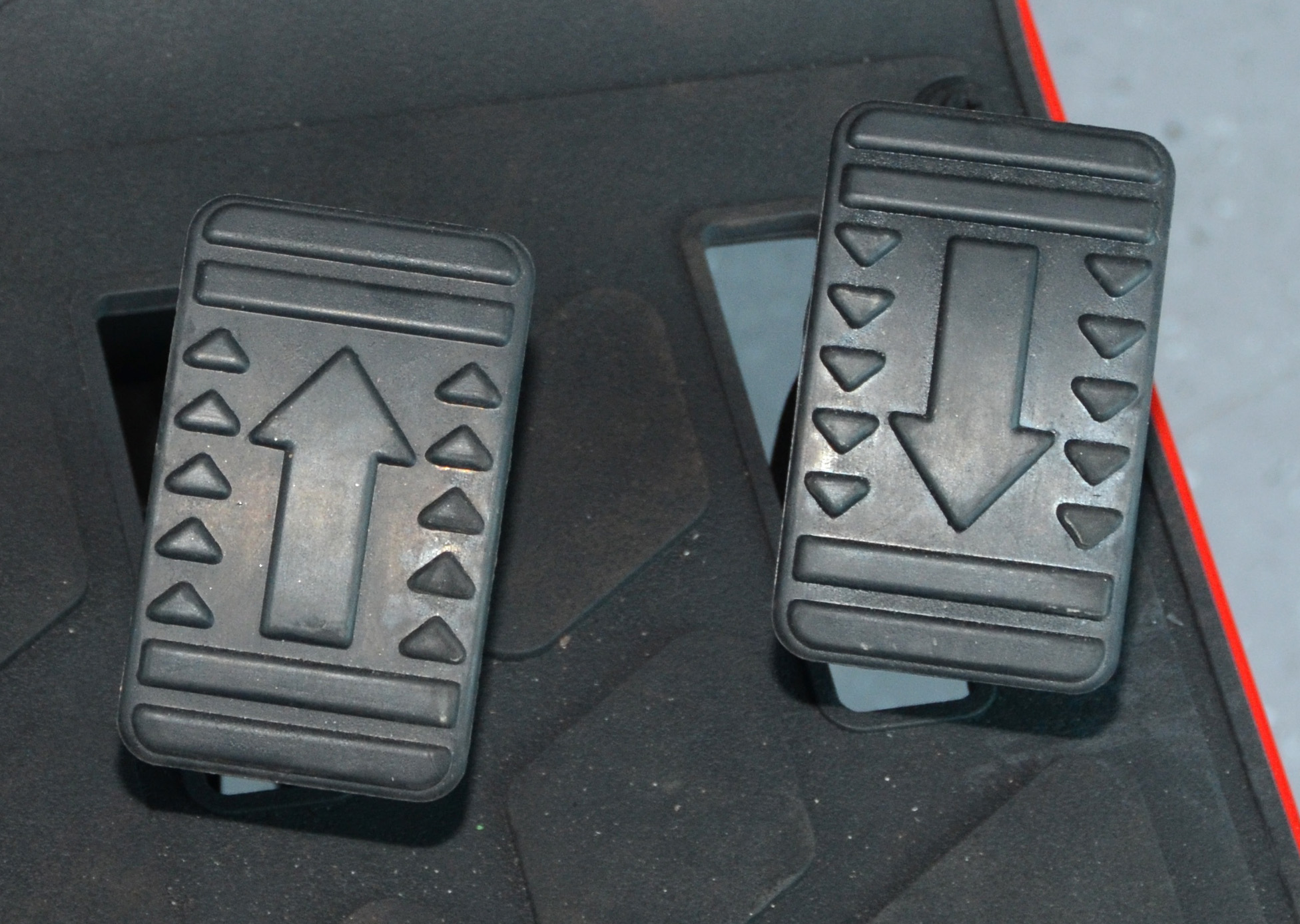

    TYM T313 Foot Controls
    • The Hydrostatic drive controlled by side-by-side forward and reverse pedals for ease of operation.
    • Hydrostatic power steering lightens steering especially important with front end loaders
    • Cruise control for tireless driving when mowing large areas.

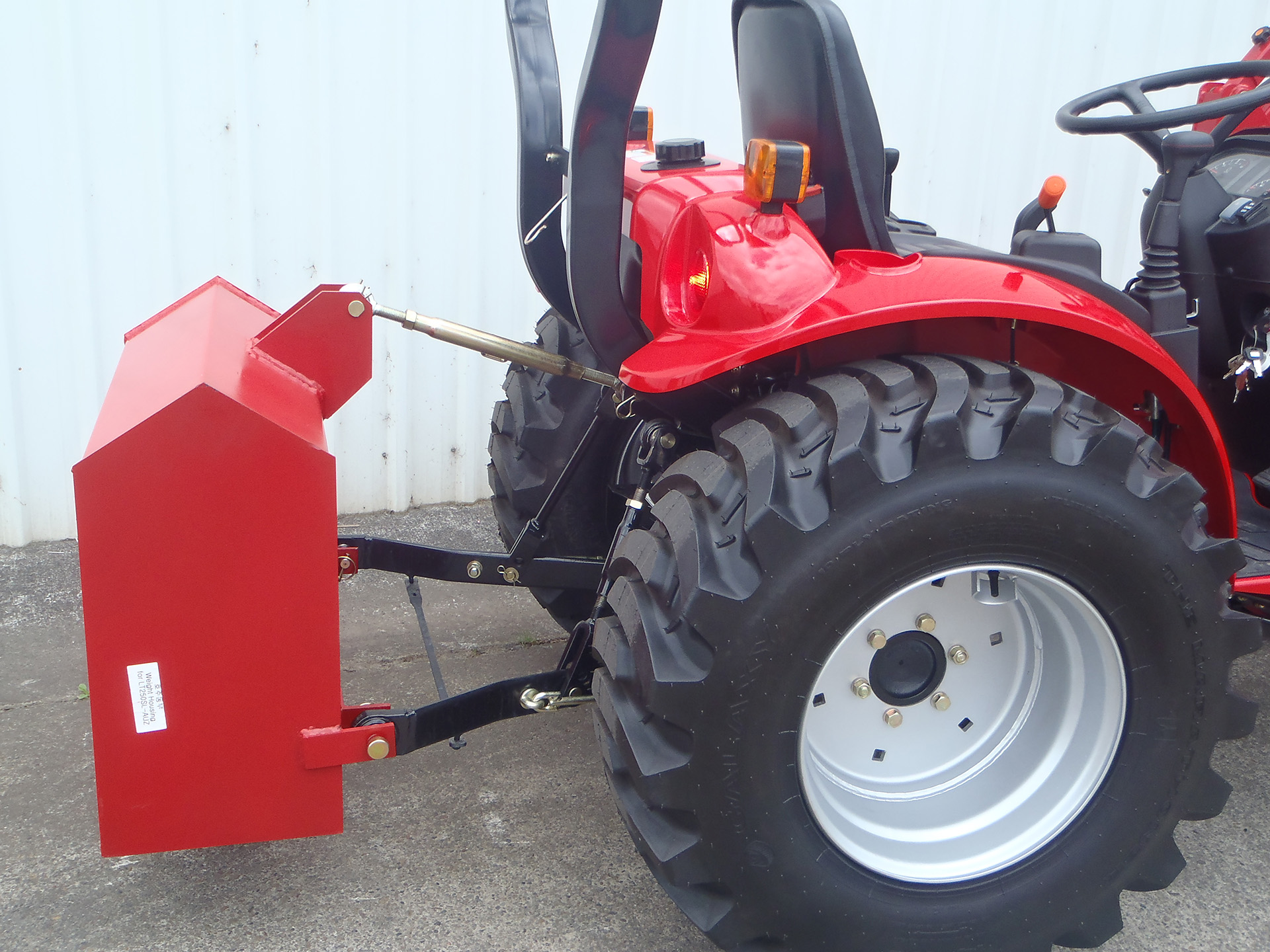

    TYM T313 Rear Tyre
    • Industrial front and rear tyres are ideal for front-end loader applications
    • Large 23x8.5-12 Front tyres
    • Large 12-16.5 Rear tyres

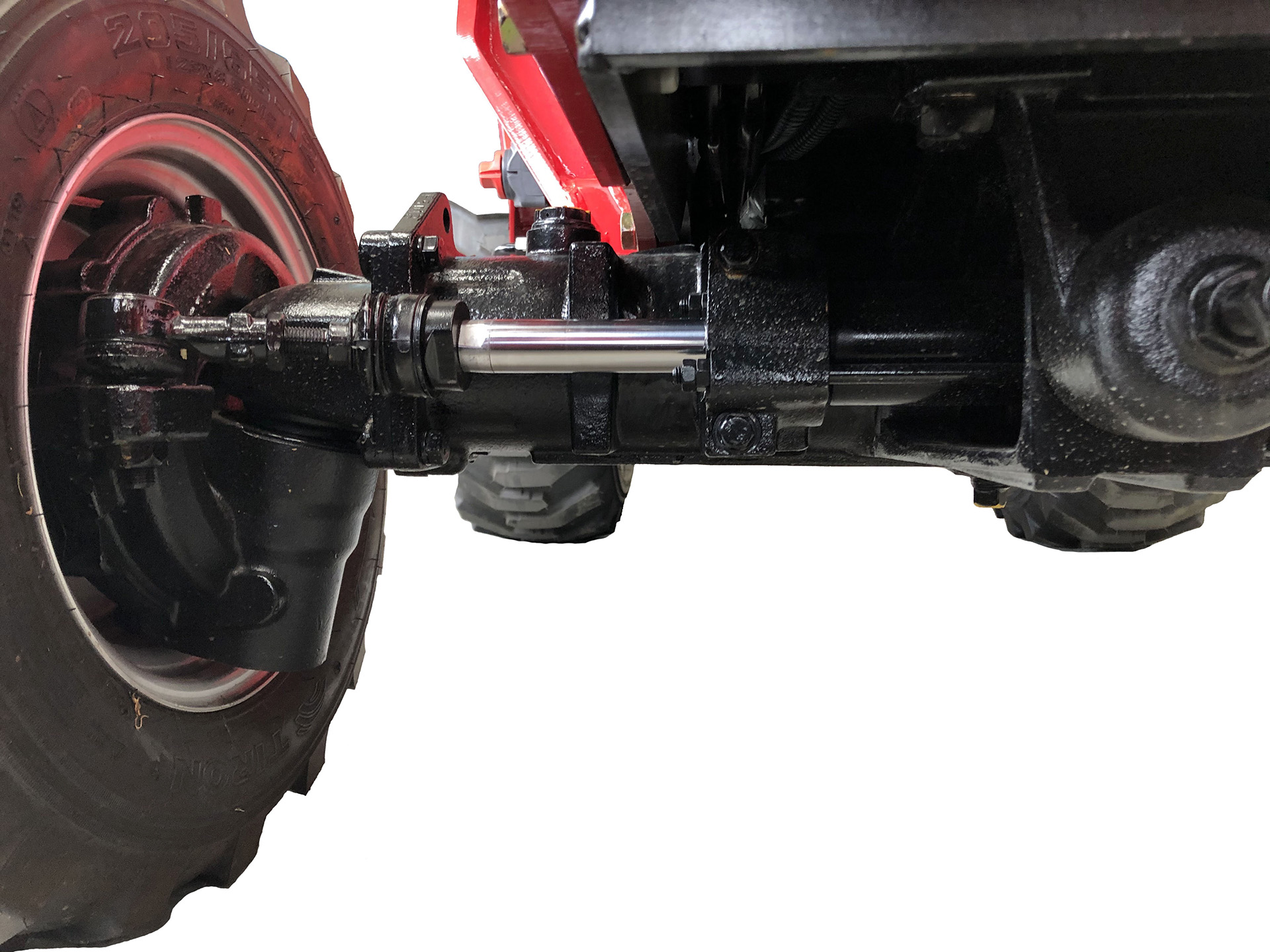

    TYM T313 Axle
    • The heavy duty front axle performs in tough working conditions and handles loads with ease
    • A long wheel base and wide stance increases stability in all conditions

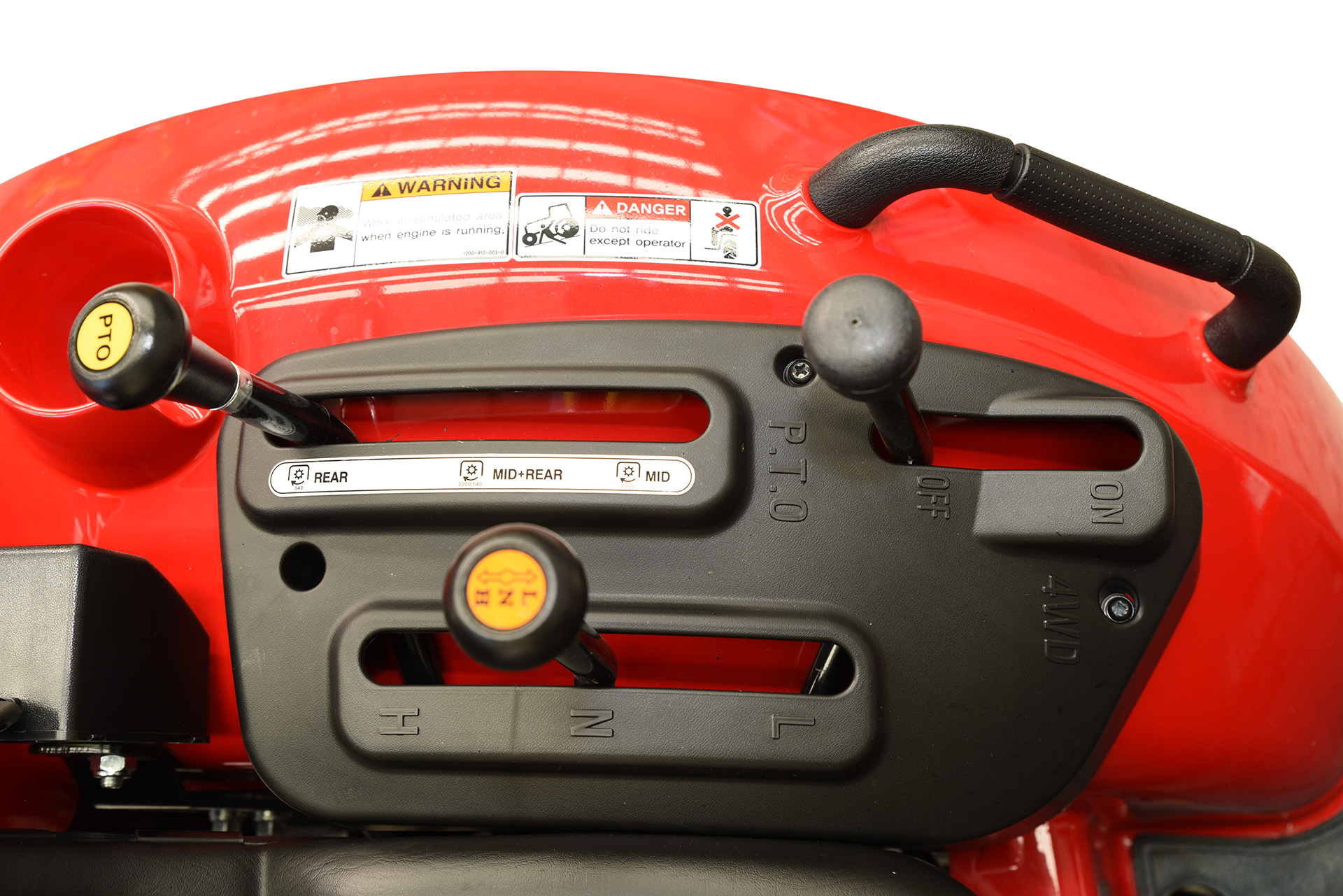

    TYM T313 4WD Lever
    • 4WD and the Diff Lock provides better traction, control and performance
    • 4WD mode is controlled by a lever on the left hand side of the operator
    • Rear axle with diff-lock for difficult traction situations
    • Inboard wet disc brakes with LHS-RHS brake splitting for brake assisted turning in tight situations

    PTO, HYDRAULICS & LINKAGE

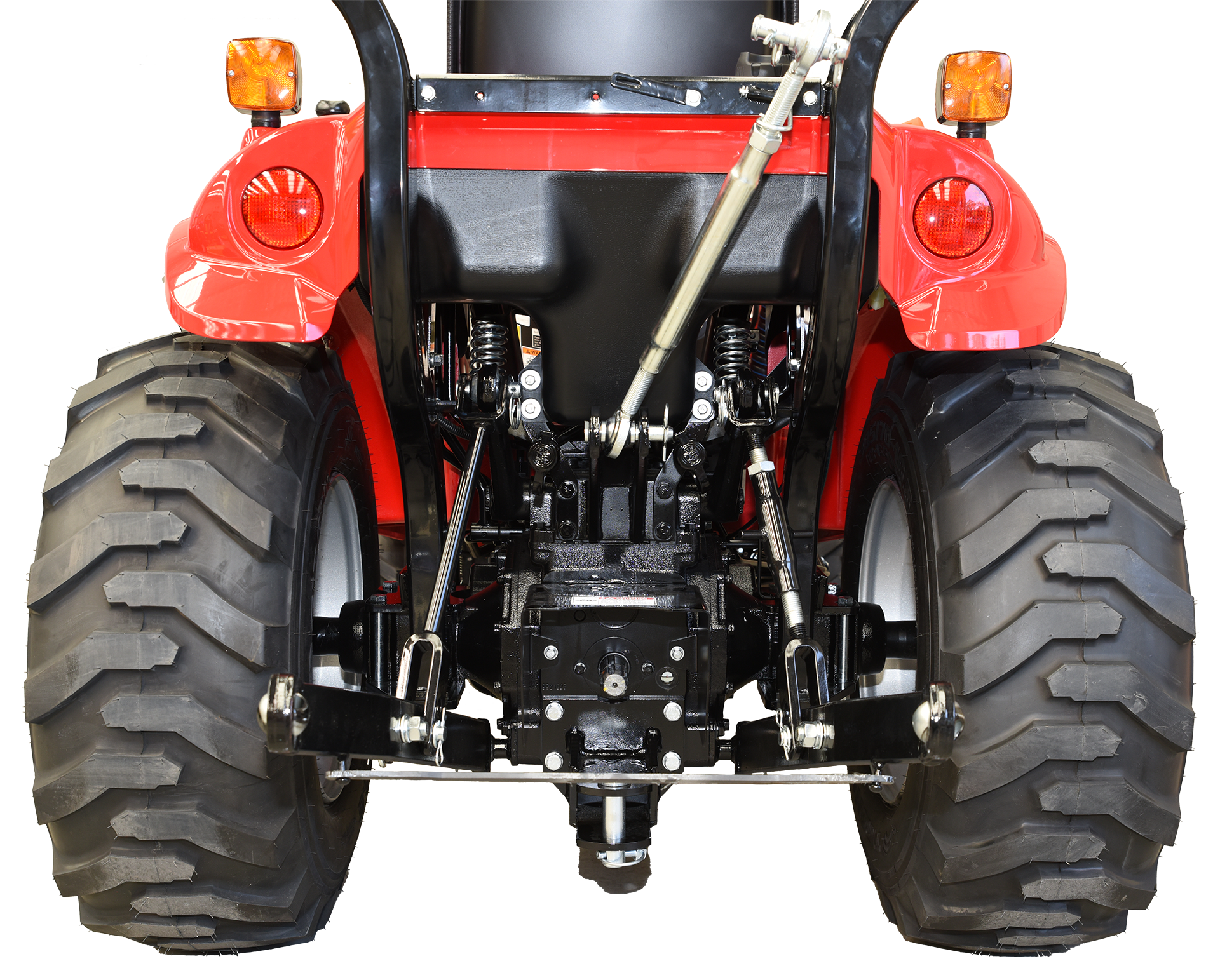

    TYM T313 Rear Linkage
    • 1 set of double-acting hydraulic remotes
    • Category 1, 3-point linkage with manual position controls
    • 700kg lifting capacity gives the tractor great versatility and will handle many attachments

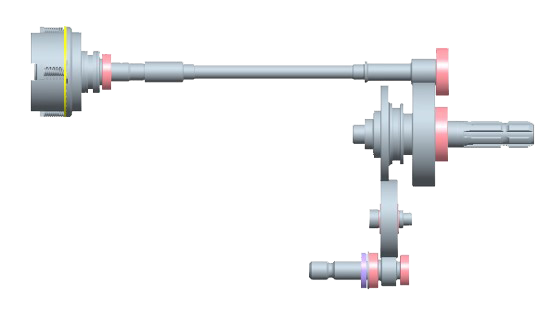

    TYM T313 PTO
    • The PTO drive is a smiple and direct design for high efficiency and power
    • The PTO clutch is and independant oil immersed clutch pack for long life and simple operation

    CONTROLS

    TYM T313 Dash
    • Ergonomic design - easy to reach controls
    • Easy to read instrument panel
    • Combination S/W
    • Cruise Control
    • Push button PTO On/Off Switch

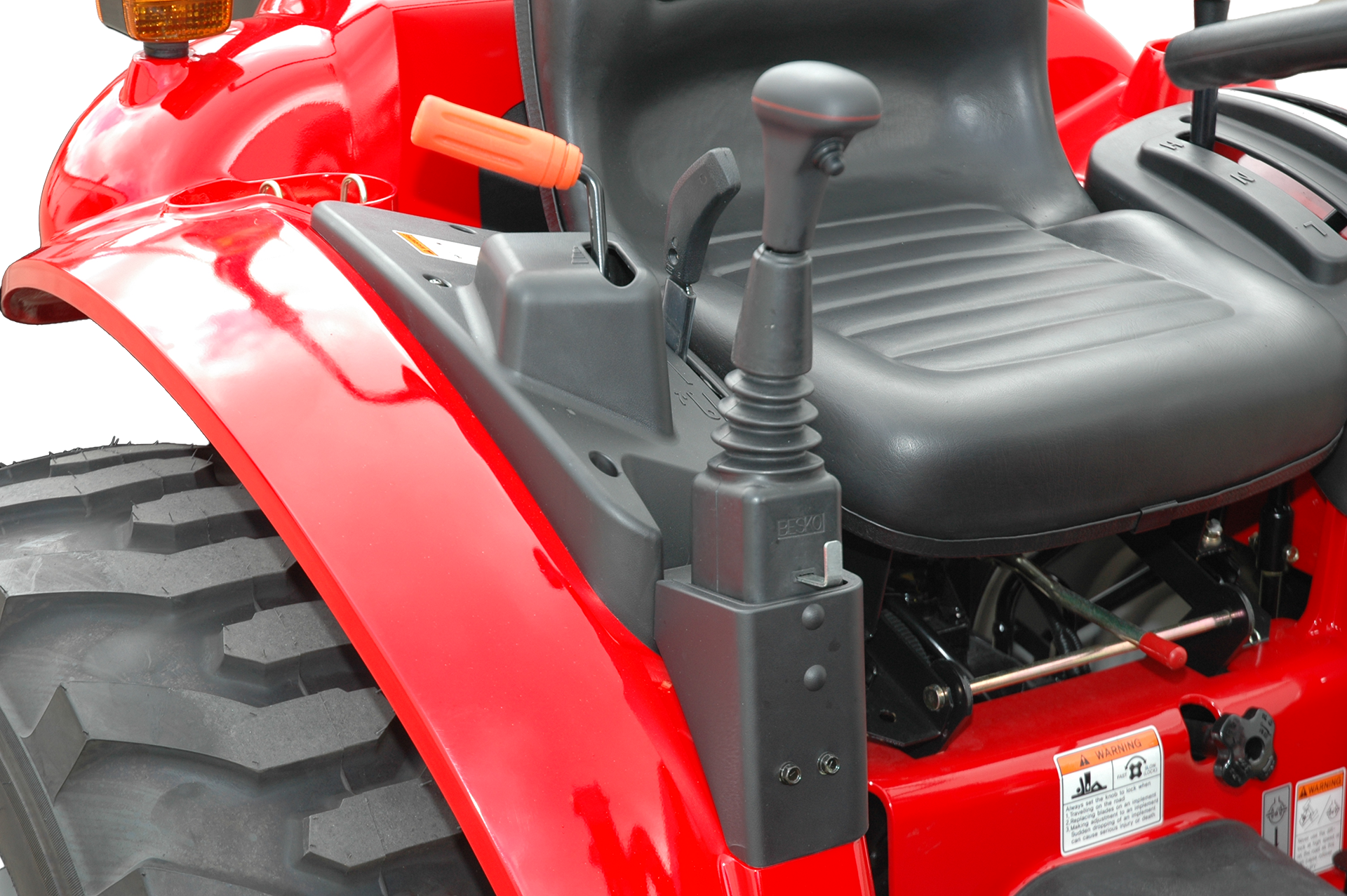

    TYM T313 Joystick
    • Throttle lever (orange lever) is conveniently located adjacent to the steering wheel
    • 3 point linkage position lever
    • Fully integrated single joystick for control delivers ergonomic operation of front end loader

    LAYOUT

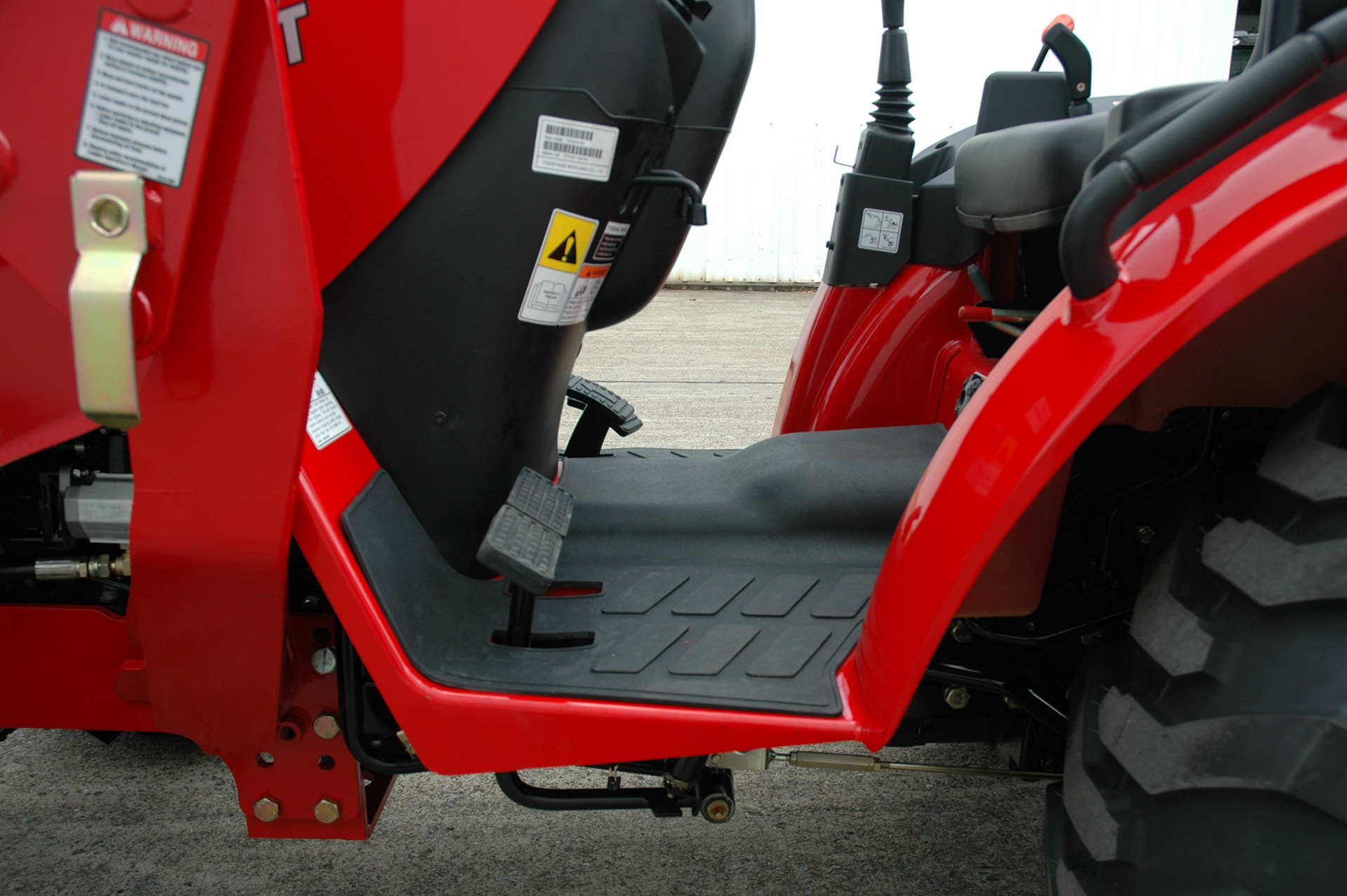

    TYM T313 Tractor Access
    • Clean uncluttered access

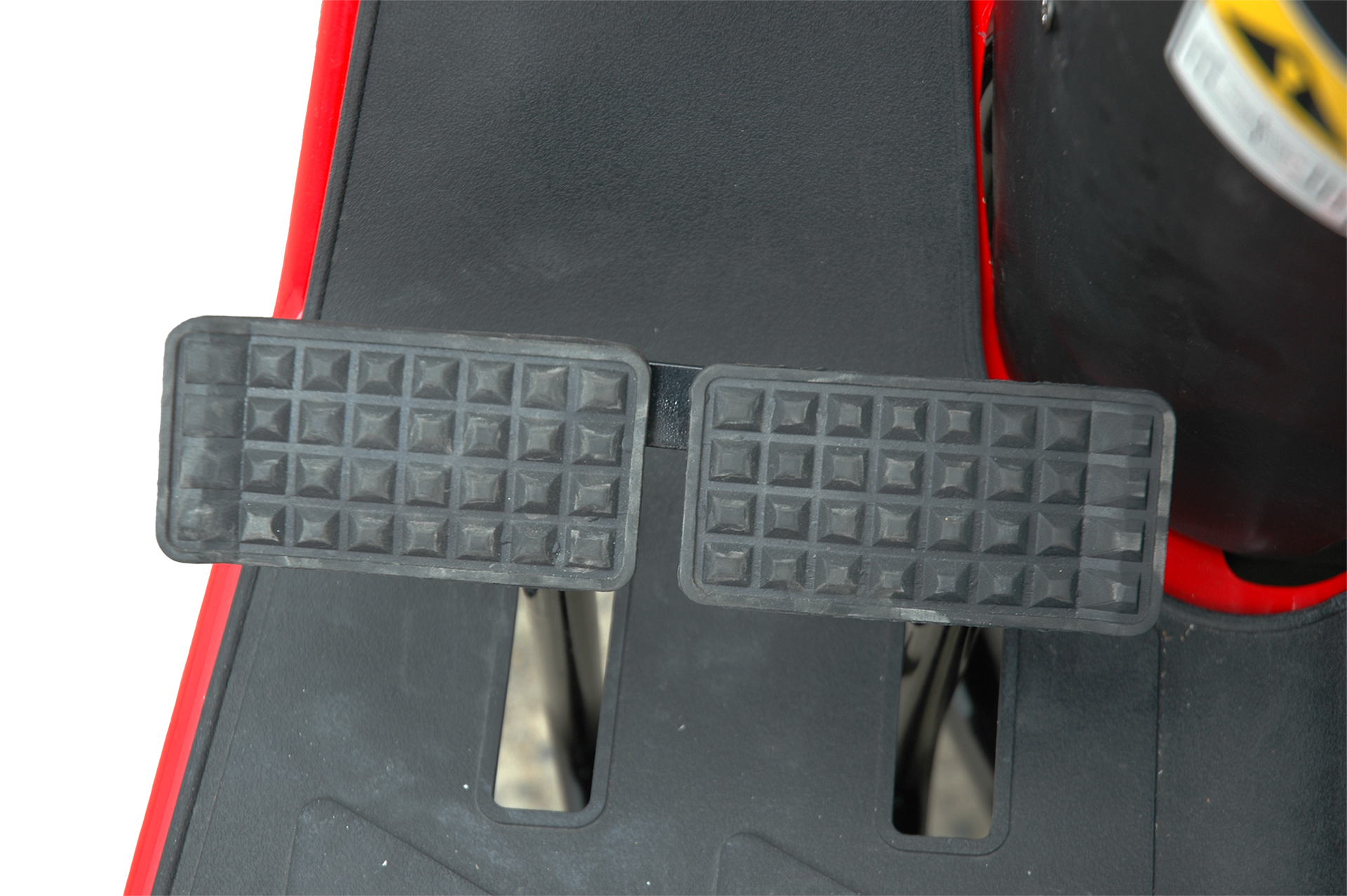

    TYM T313 Brake Steer
    • Turning brakes located on operator's left to improve turning in confined areas.

    AUXILIARY HYDRAULIC VALVE

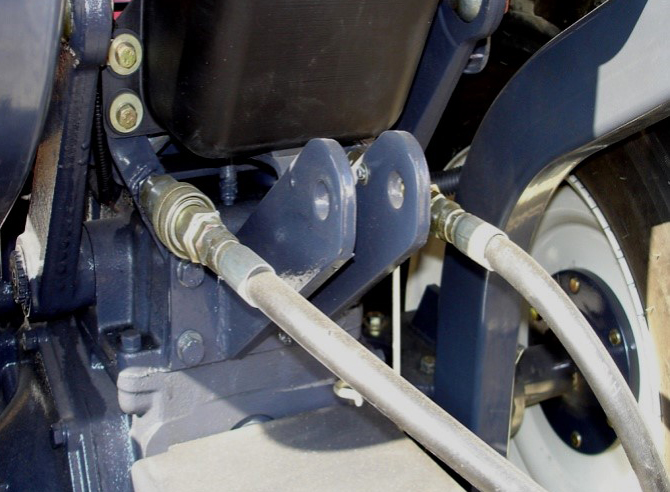

    TYM T313 Tractor Auxiliary hydraulic valve
    • For the operation of log splitters

    OPTIONS

    FRONT END LOADER

    Options
    • Level lift Front-end Loader ideal for materials handling and utility work around the small farm.
    • Easy quick detach bucket and loader with inbuilt quick release loader parking stands
    • Inegrated loader joystick with "trigger" button control for 4-in-1 bucket
    • Superb visability to loader bucket
    • Level lift indicator
    • Full details & specifications on the optional front end loader

    SPECIFICATIONS

    T265
    Engine Type TYM
    Engine Power (hp/kW) 24.5 / 18
    Rated power @engine RPM 2600
    Number of Cylinders/cc 3/1175
    Transmission Type Hydrostatic
    Forward / Reverse Shuttle Type HST
    Number Speed Ranges 2
    Maximum Speed (km/h) 16
    PTO Speeds (rpm) 540
    Mid PTO Tick
    Independent Push Button PTO engagement Tick
    Steering brakes Tick
    3-point Linkage Lift Capacity (kg) 700
    Number of Hydraulic Remotes 1 set
    Integrated Joystick Control for Front-end Loader Tick
    Weight - Tractor Only (kg) 865


    BROCHURE

    Click this link to download a brochure. Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.
