    TYM Tractors

    T1003 Utility Cabin Tractor

      Loading...
    TYM T1003 Cabin

    Photograph for illustration purposes - standard specifications may not match those shown.

    FEATURES OF THE TYM 'T1003' 4WD CABIN TRACTOR

    ENGINE

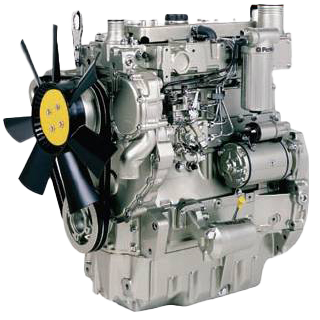

    T1003 Perkins Engine

    • Powered by 99.5hp Perkins 4 cylinder Diesel engine
    • Fuel efficient, reliable. powerful and rugged engine
    • 4400cc engine for high performance in heavy duty applications
    • Dual dry element air cleaner for Australia's dusty conditions

    T1003 Fuel Tank

    • 126 litre fuel tank capacity will provide for many working hours
    • Easy access from ground level

    DRIVELINE

    • The tractor weight of 3685kg is a reflection of the heavy duty transmission, driveline and axles. The tractor weight is, in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation

    TYM T1003 controls

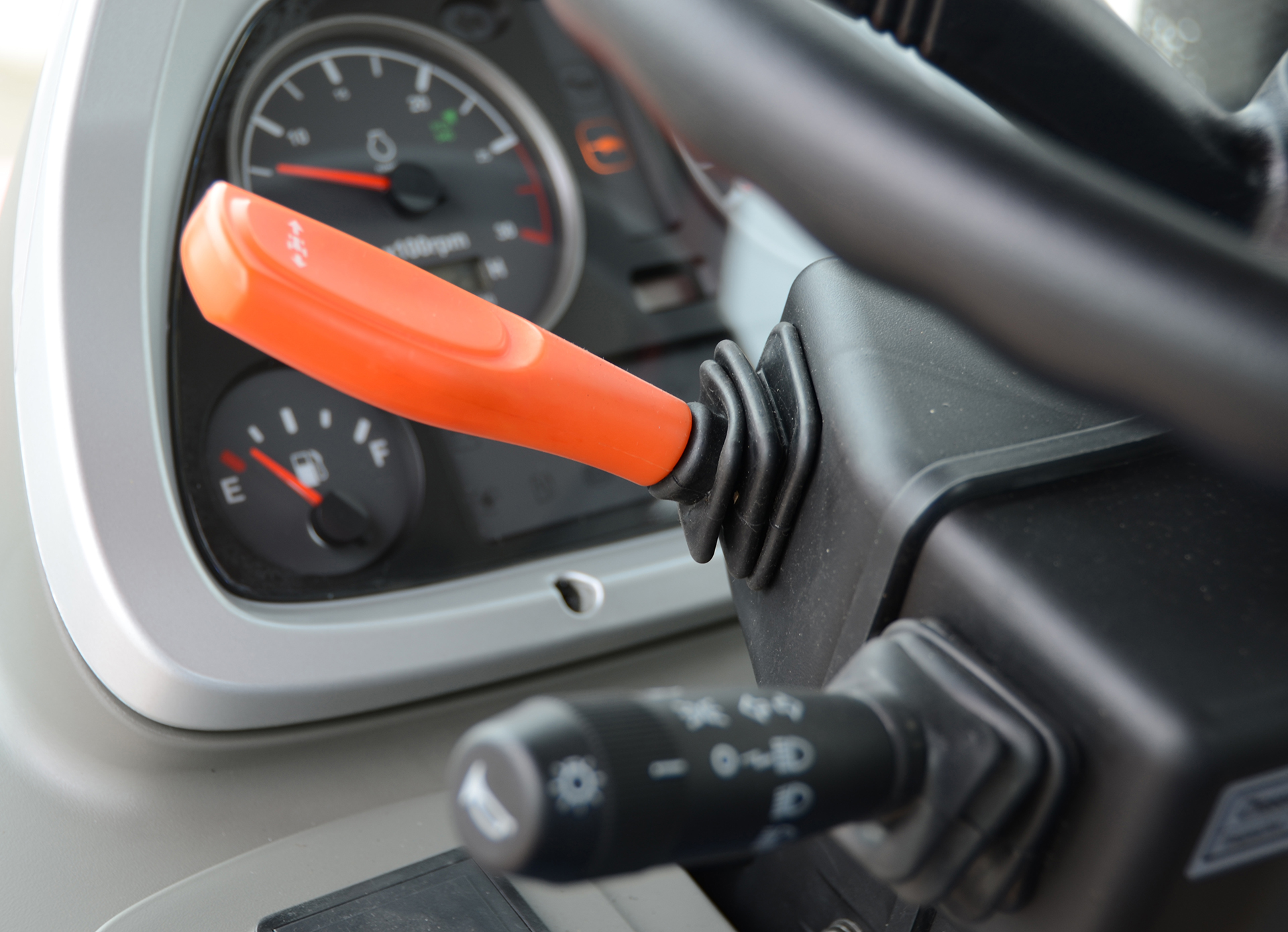

    • 32 forward / 32 reverse manual powershuttle allows you to shift forward and reverse without using a clutch
    • Powershuttle allows you to shift forward and reverse without using a clutch
    • 4 Ranges with range lever located to operator's right
    • 0-40km/h maximum speed

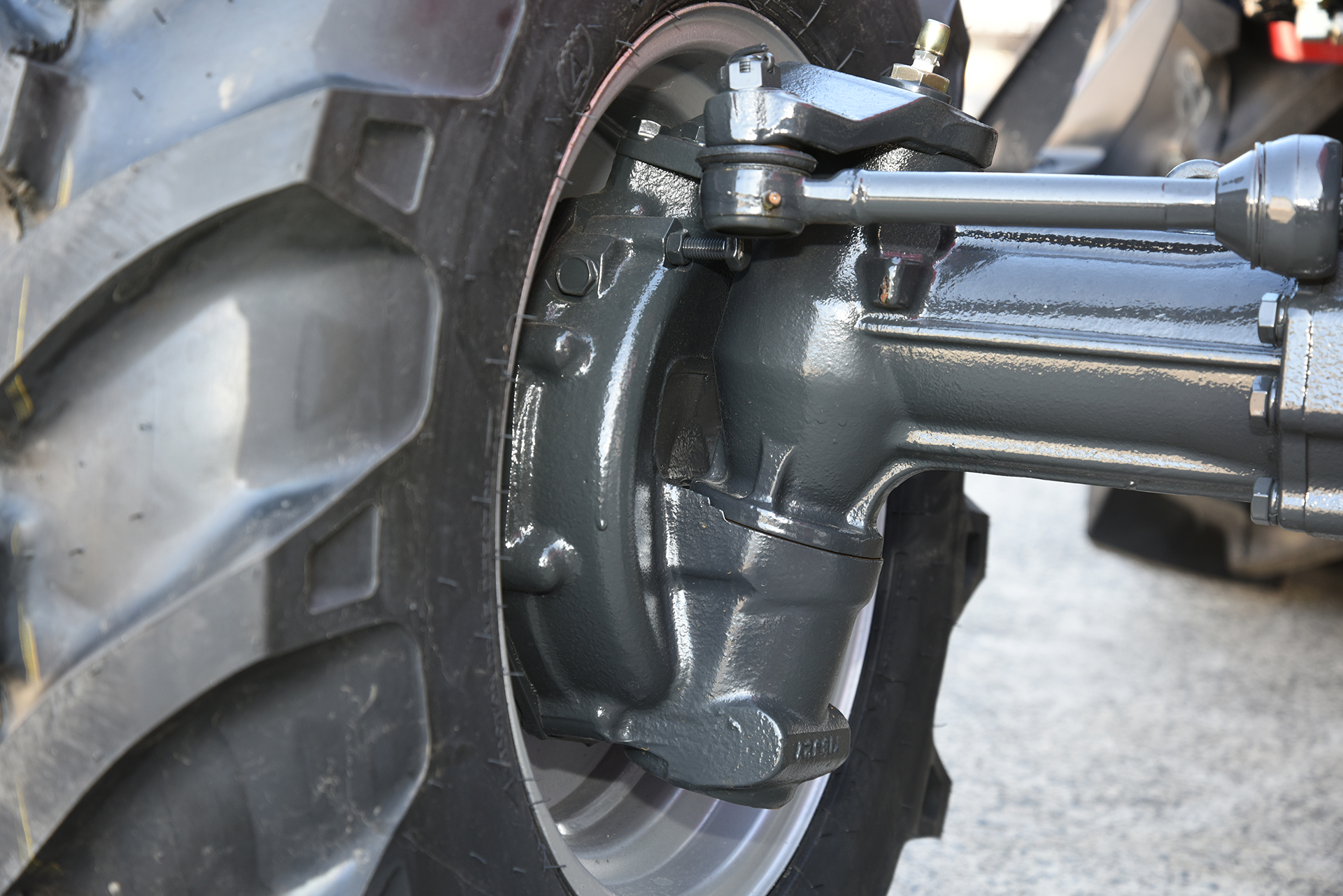

    TYM T1003 Front Axle

    • The heavy duty front axle performs in tough working conditions and handles loads with ease

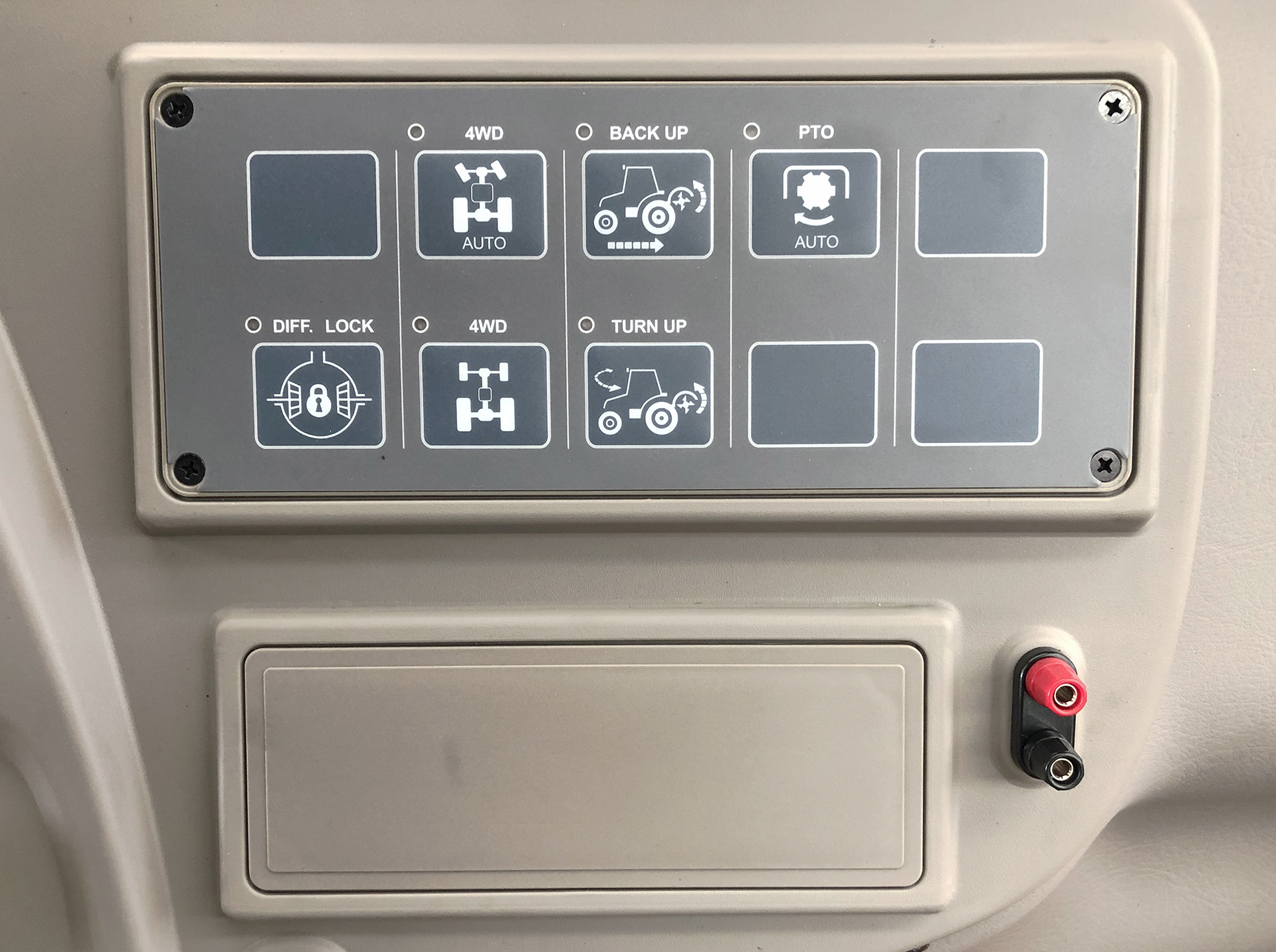

    TYM T1003 Diff Lock

    • Rear axle with diff-lock for difficult traction situations
    • 4WD and the diff-lock provides better traction, control and performance
    • 4WD mode is controlled by a lever on the left hand side of the operator

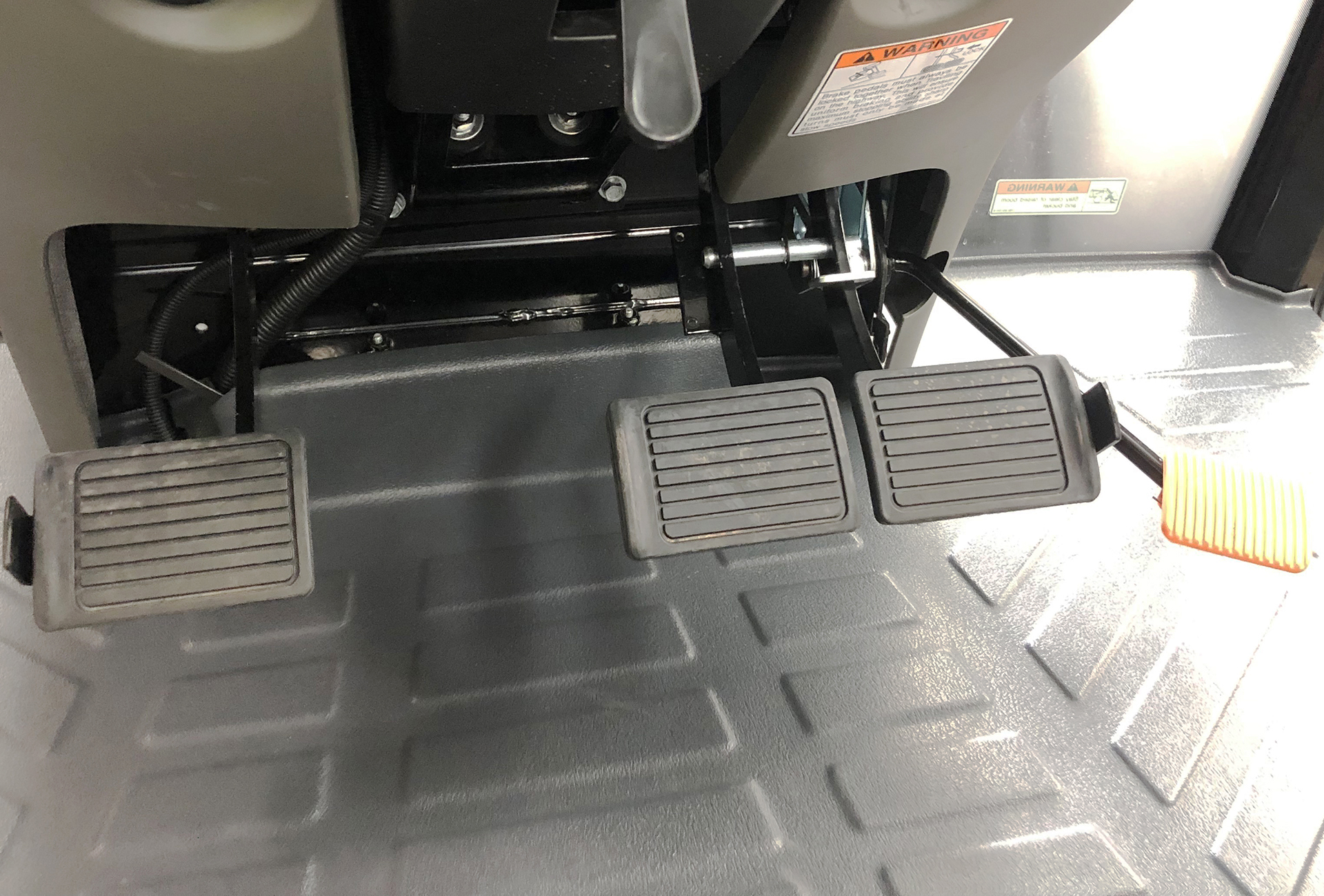

    TYM T1003 Split Brakes

    • Inboard wet disc brakes can be split for indpendent left and right side braking to assist turning in tight situations

    PTO, HYDRAULICS & LINKAGE

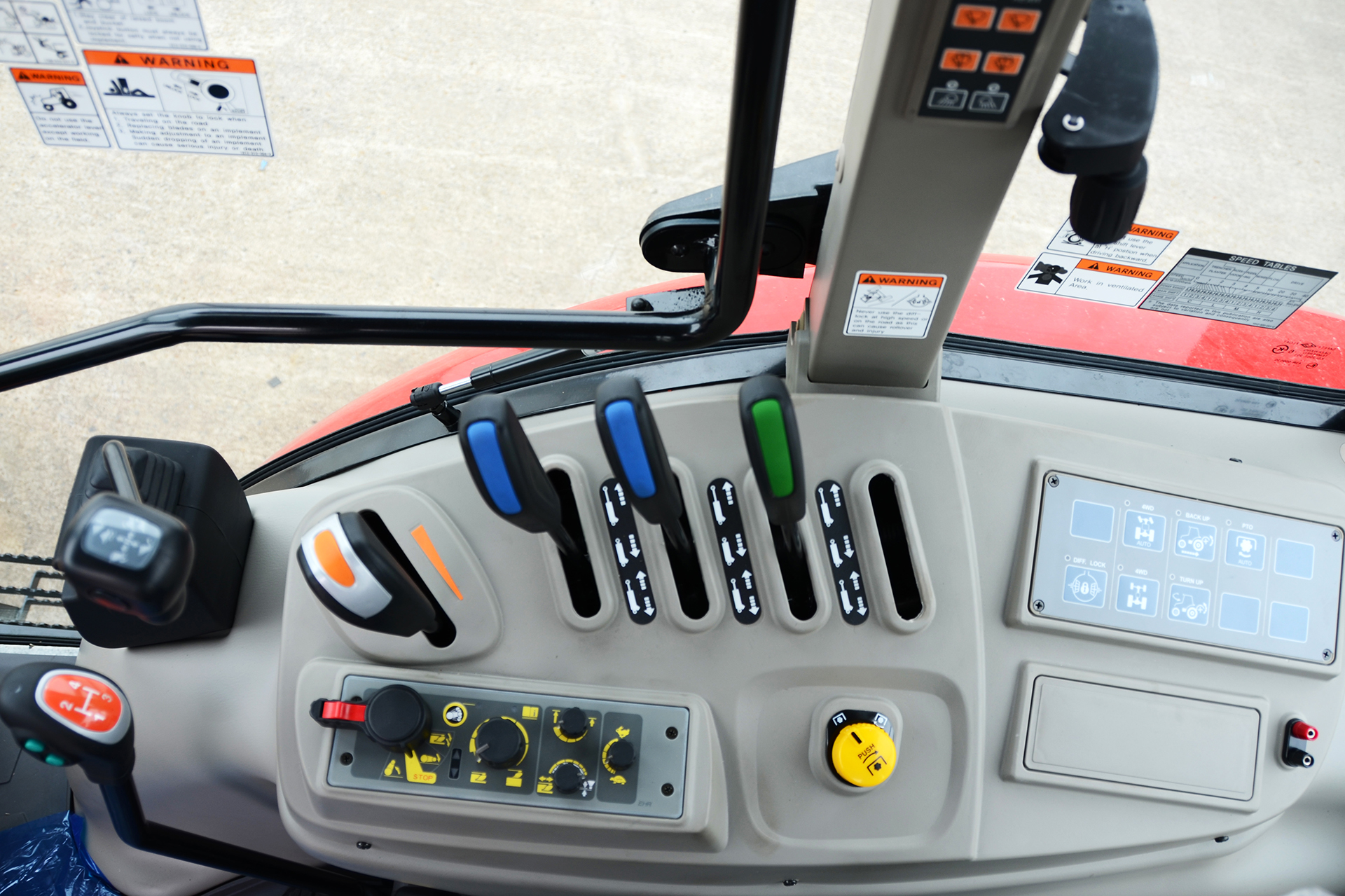

    TYM T1003 Linkage Controls

    • Control for the linkage and hydraulic remotes are on the right-hand side with Bosch electronic linkage controls
    • Adjustable linkage lift speed
    • Soft ride transport mode on linkage

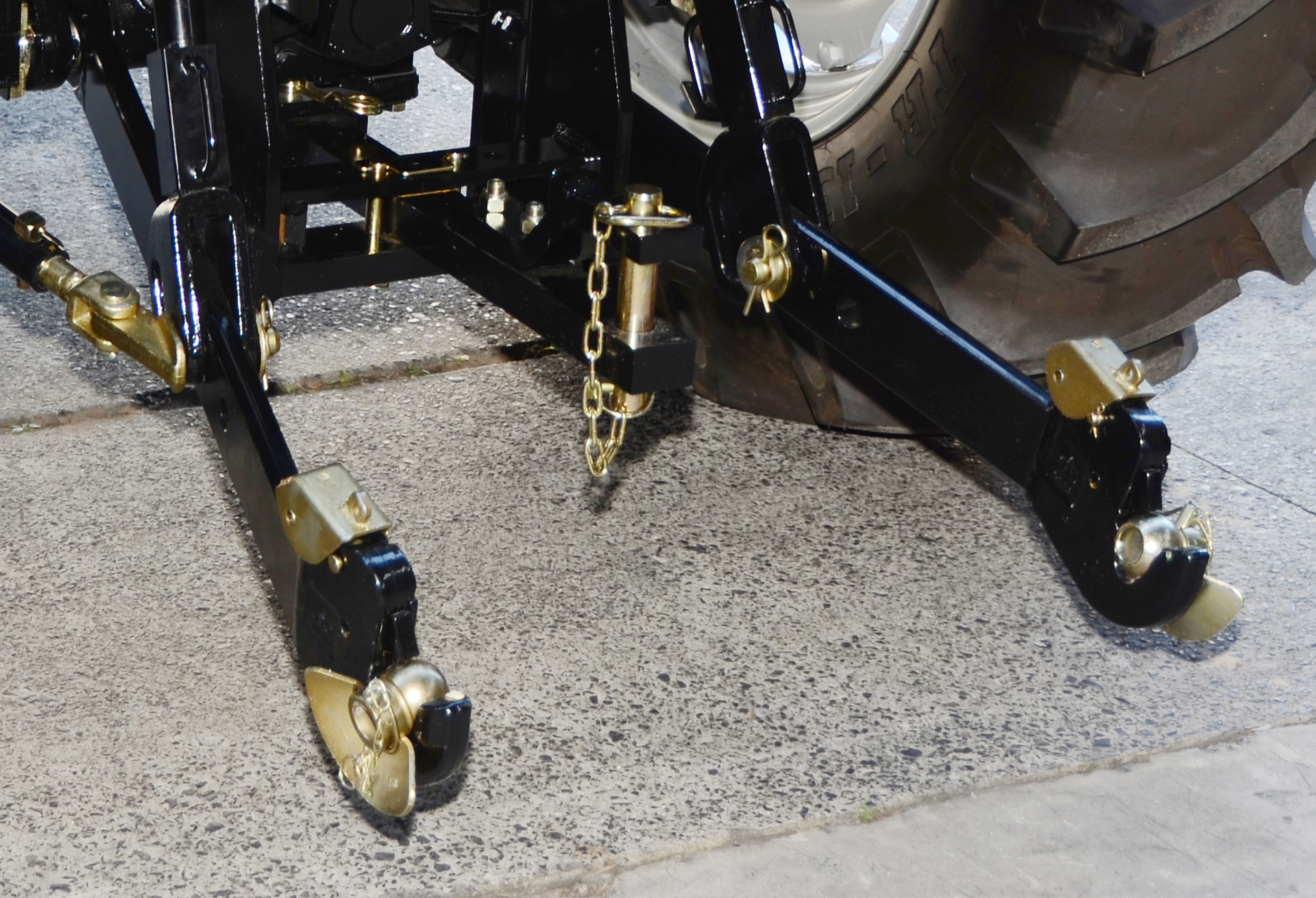

    TYM T1003 Linkage

    • 3-point linkage with quick attach lower link arms
    • Linkage arms with simple pin adjustable sway position
    • 3-point linkage with 3110kg lifting capacity gives the tractor great versatility and range of applications
    • Adjustable lower link stabiliser arms

    TYM T1003 Hydraulic Remotes

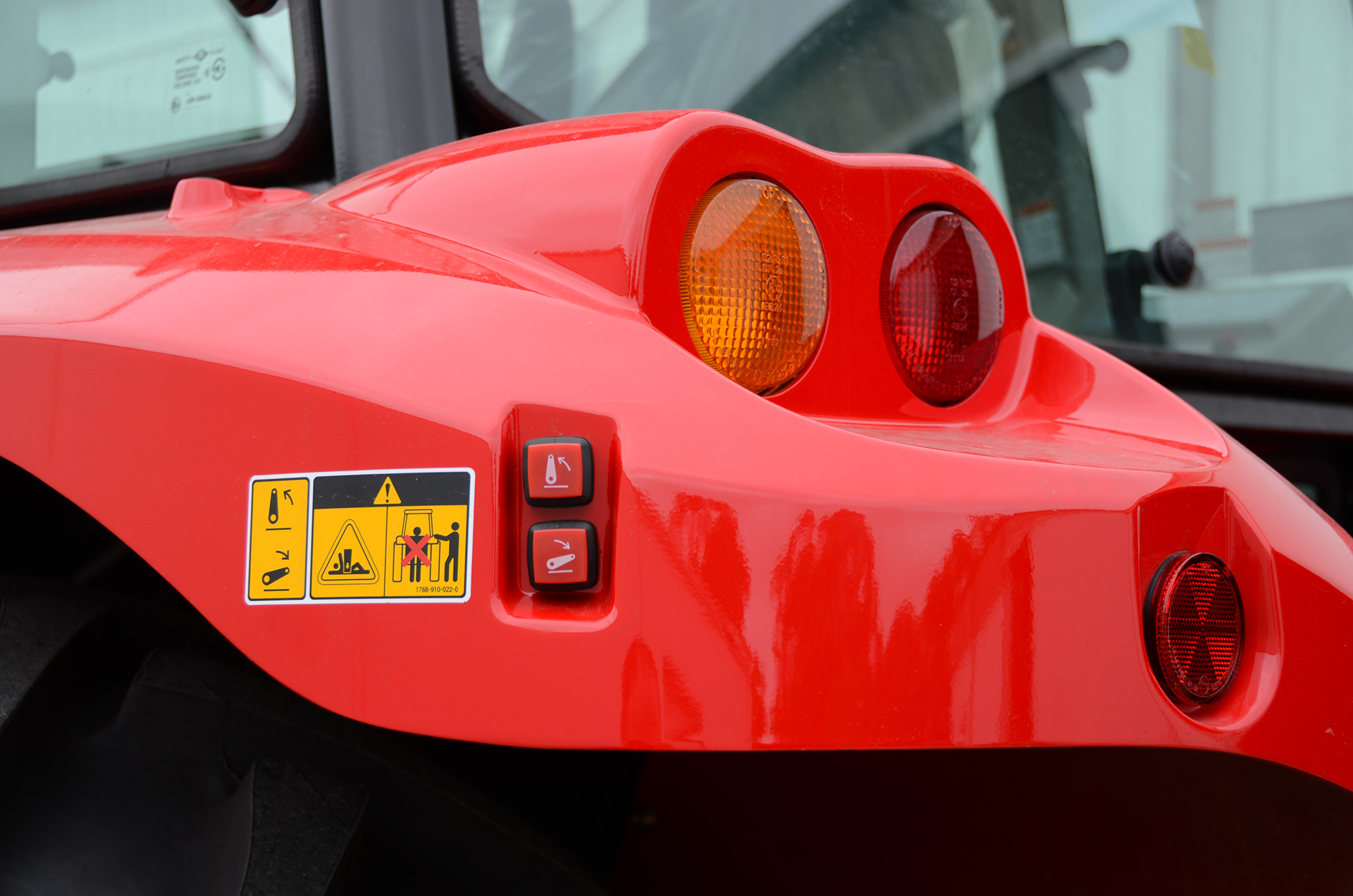

    • External button for ease of operating 3 point hitch out of cab

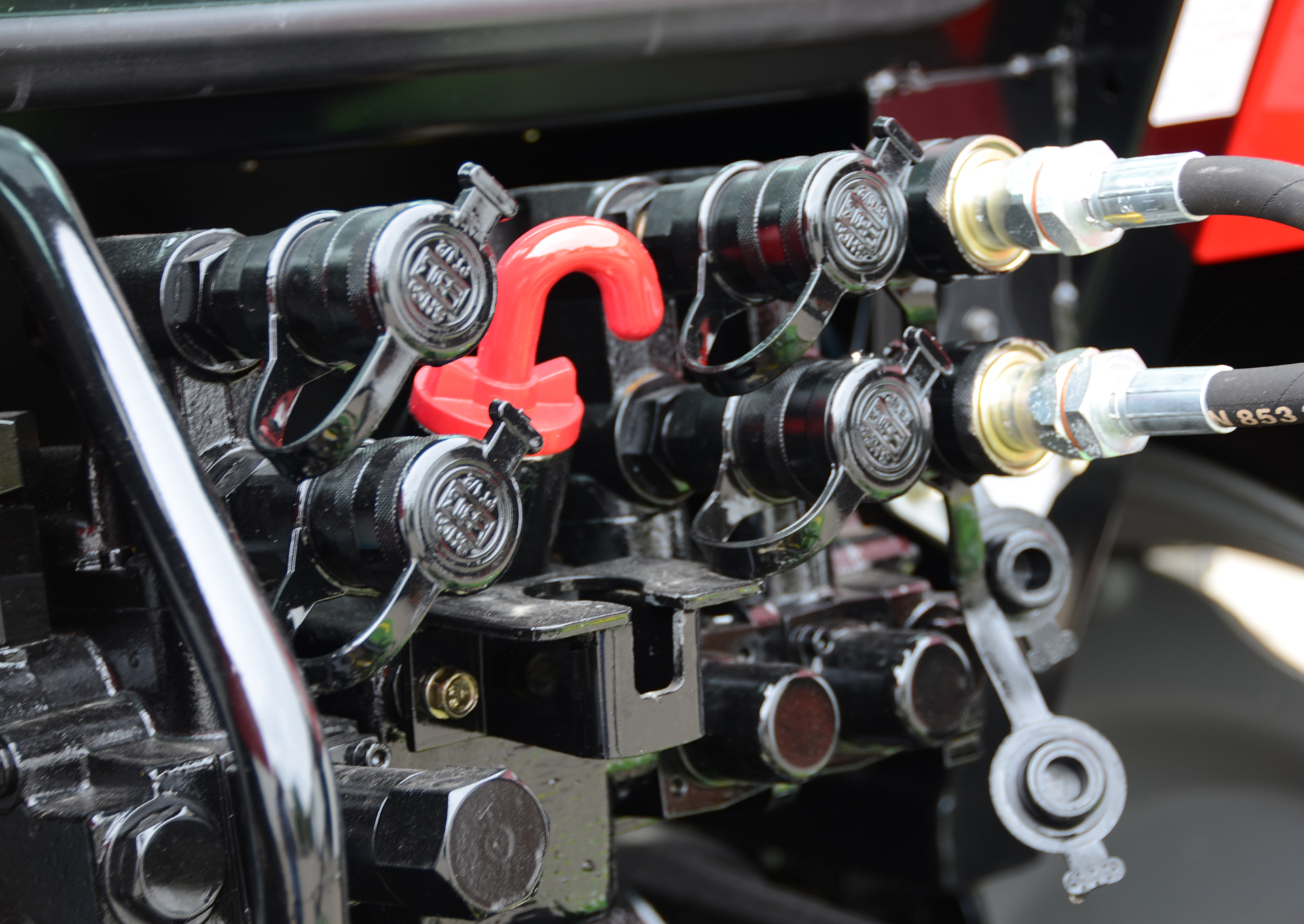

    TYM T1003 Hydraulic Remotes

    • 3 sets of double-acting hydraulic remotes
    • The PTO driveline is a simple and direct design for high efficiency and power

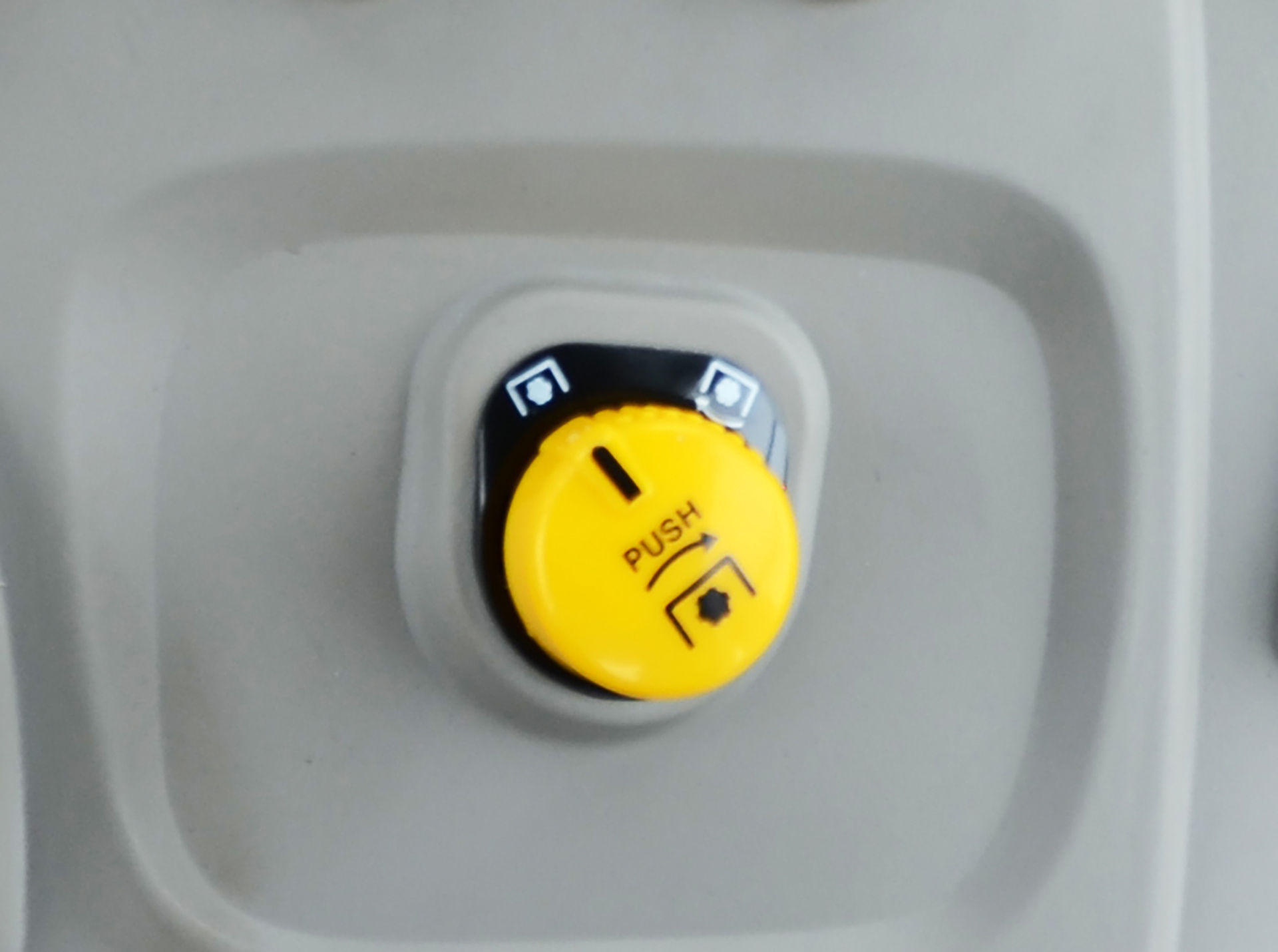

    • The PTO clutch is an independent oil immersed clutch pack for long life with simple push-button operation

    TYM T1003 Linkage Remote

    • Auto-PTO function automatically disengages the PTO when the linkage is raised, and automatically re-engages when lowered; a great function that simplifies repeated row work and prevents implement damage

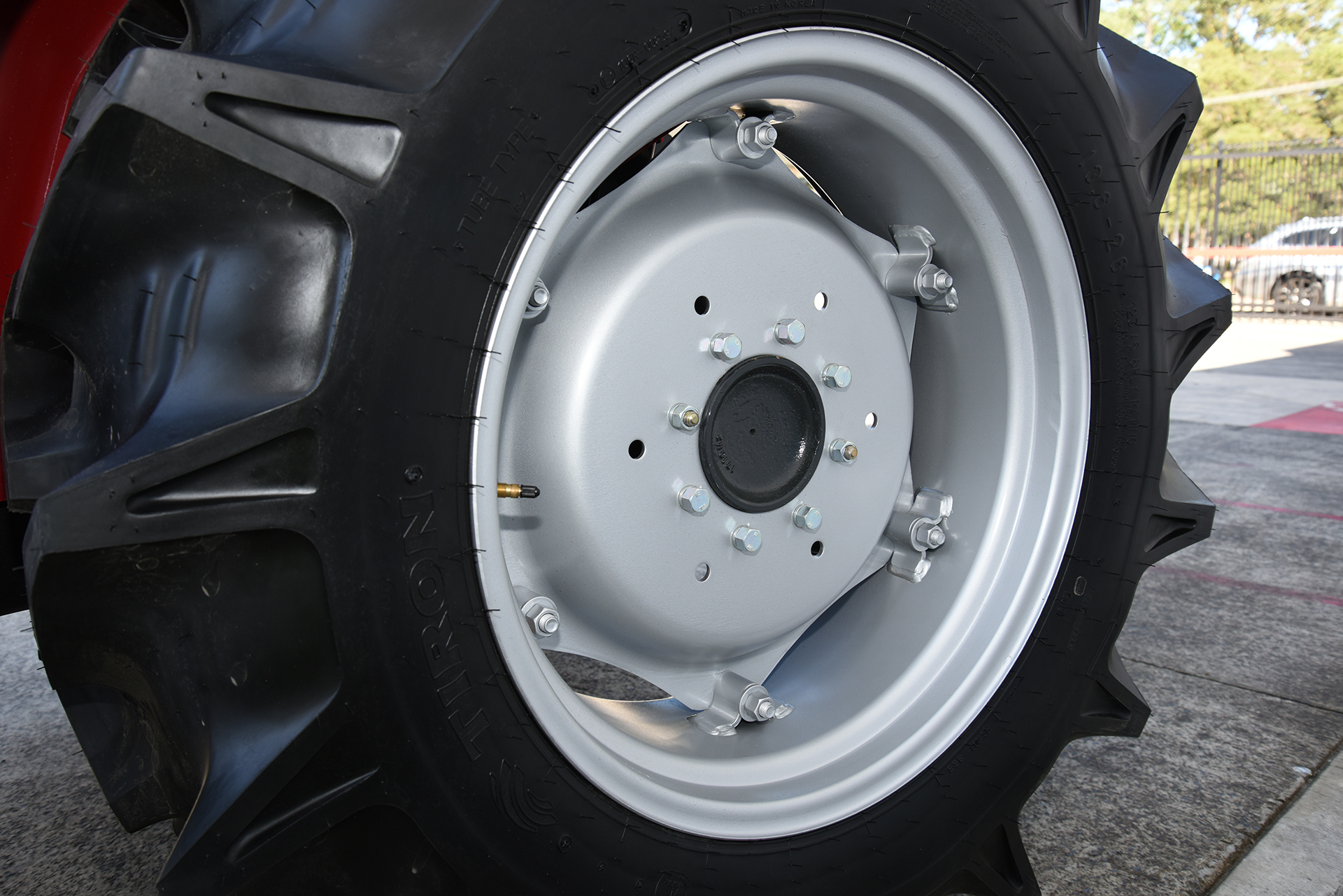

    TYM T1003 Wheel Adjustment

    • Adjustable front and rear wheels to vary or widen track width for steep conditions to improve stability

    OPERATOR AREA

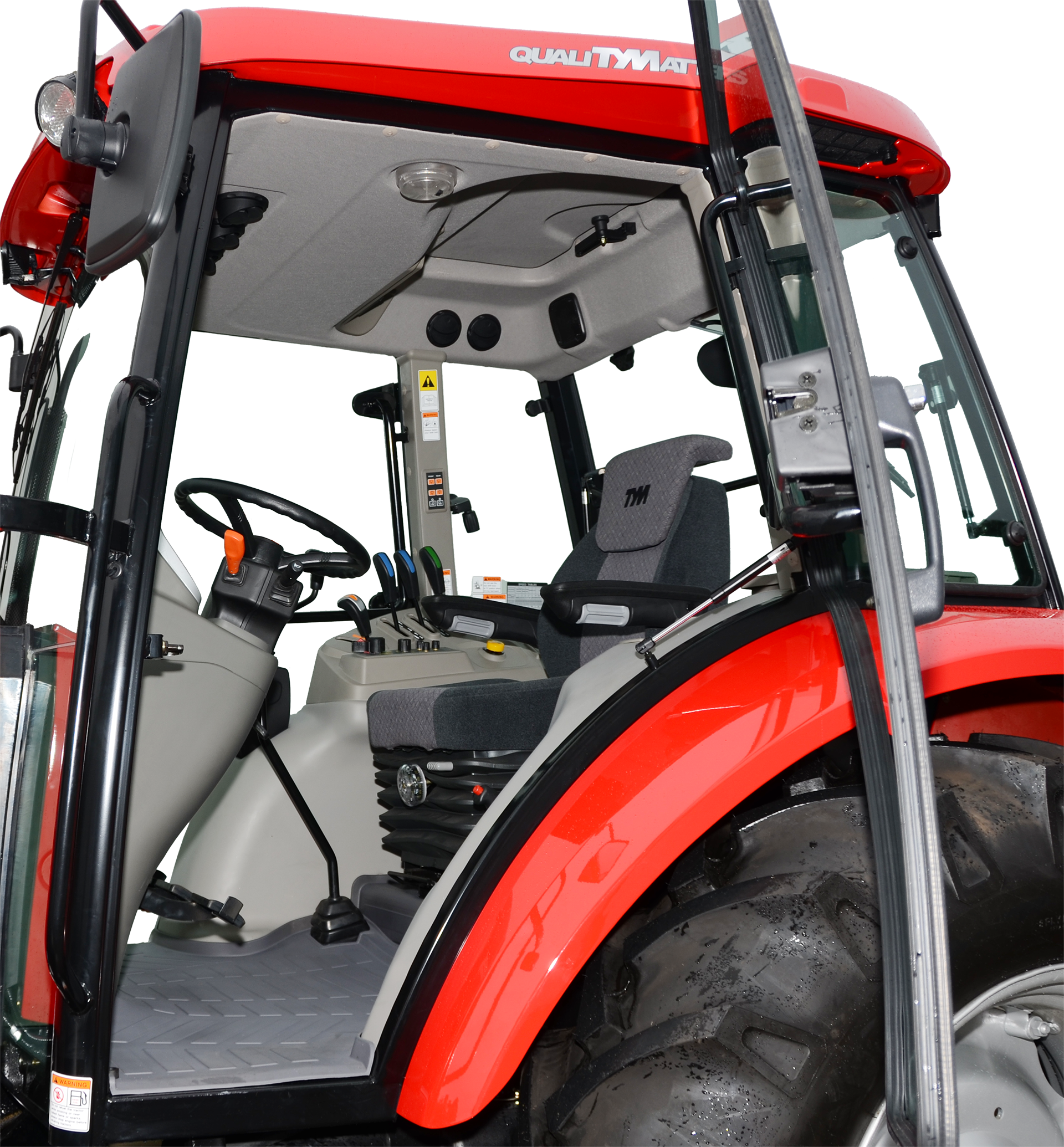

    TYM T613 Cabin Access

    • Wide door entry for easy access
    • Uncluttered flat floor without trip hazards
    • Rubber floor mat reduces noise and provides an easy to maintain surface
    • Plenty of leg room
    • Sunroof

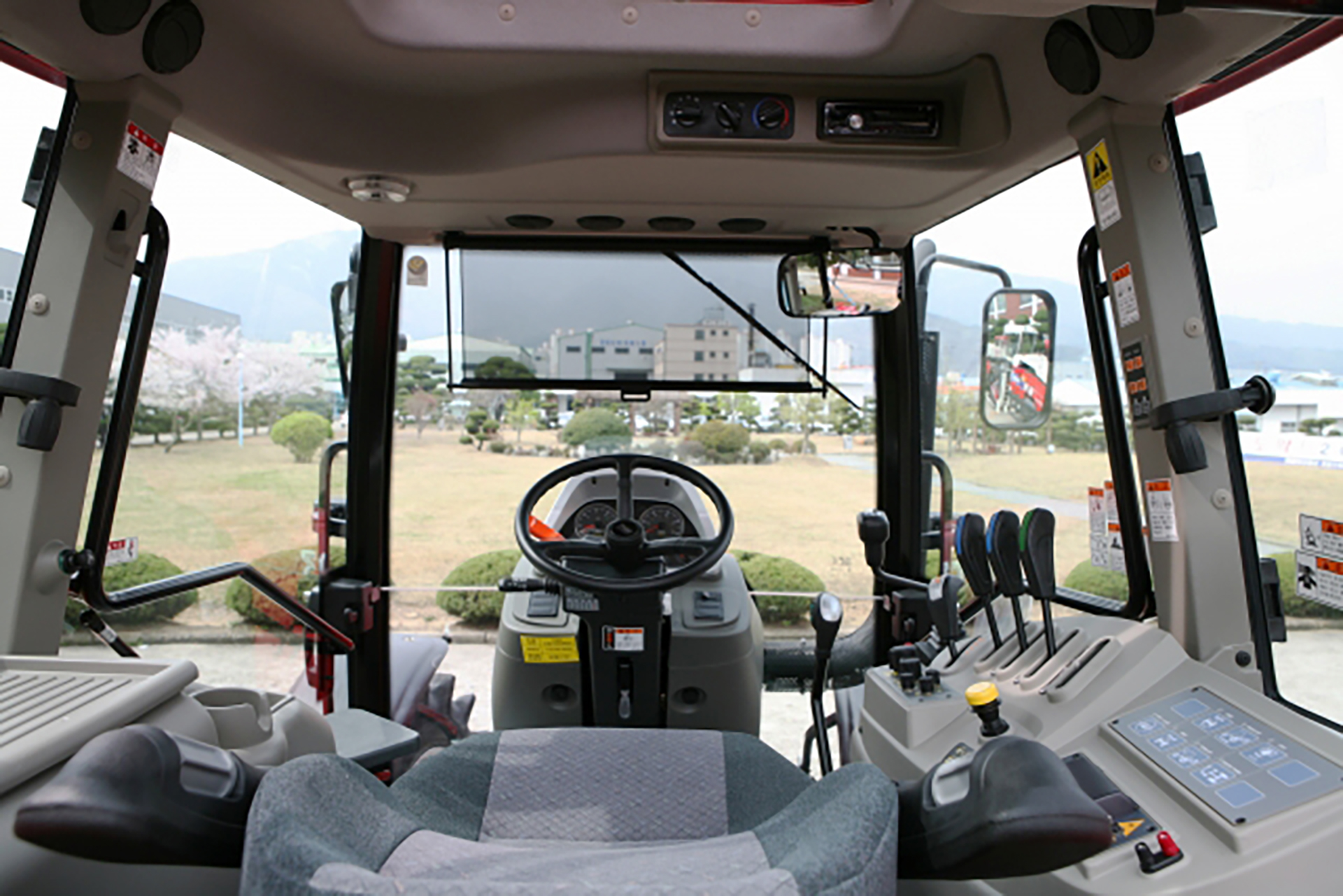

    TYM T1003 Cockpit Dash

    • Ergonomic design with easy to reach controls
    • Easy to read instrument panel
    • Combination switch controls lights and indicators
    • Digital forward speed display

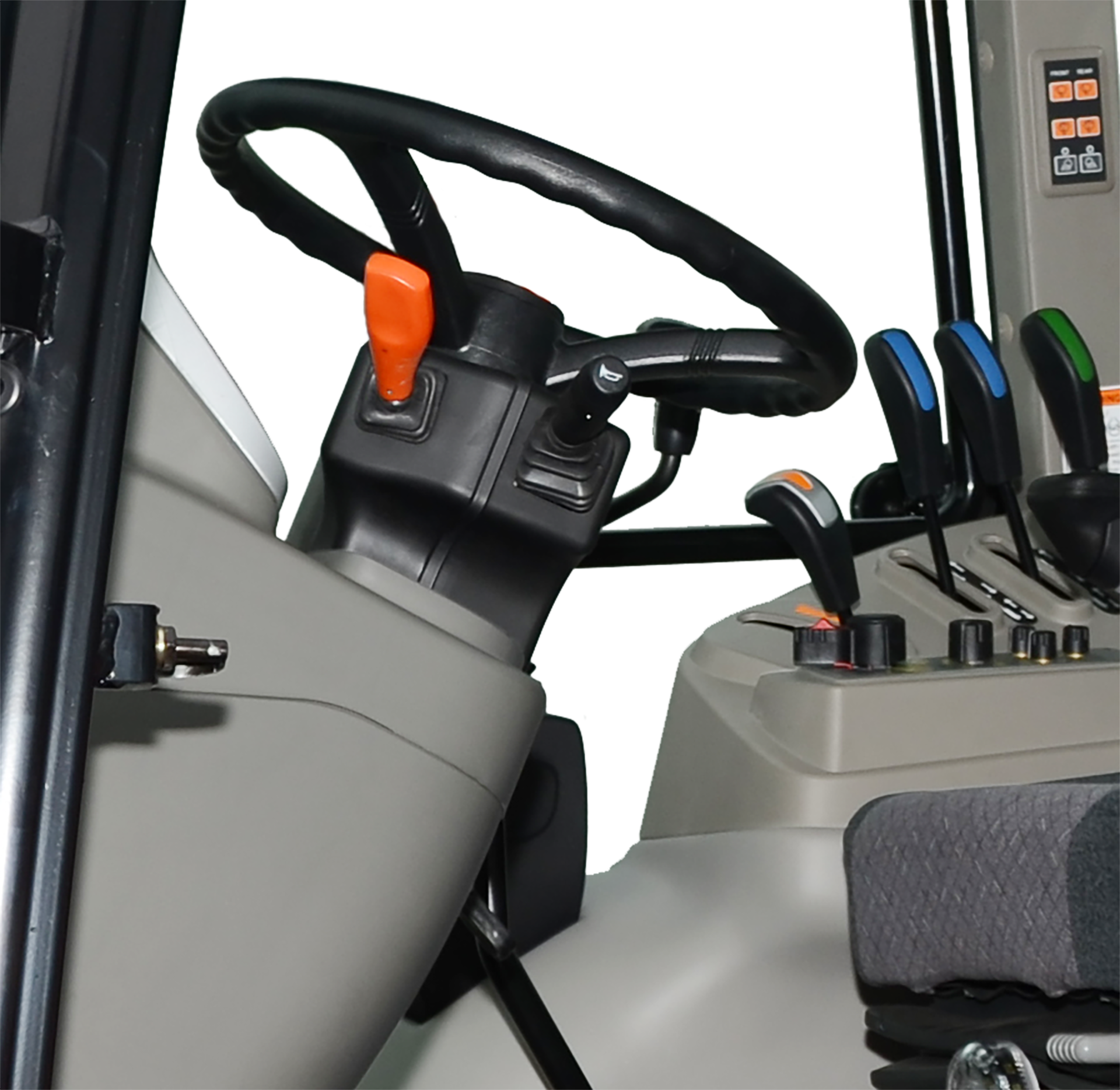

    TYM T1003 Tiltable Steering Wheel

    • Tiltable steering wheel

    TYM T1003 Cabin Integrated Joystick

    • Fully integrated joystick for control of front end loader with electric button for third function operation (when loader is fitted)

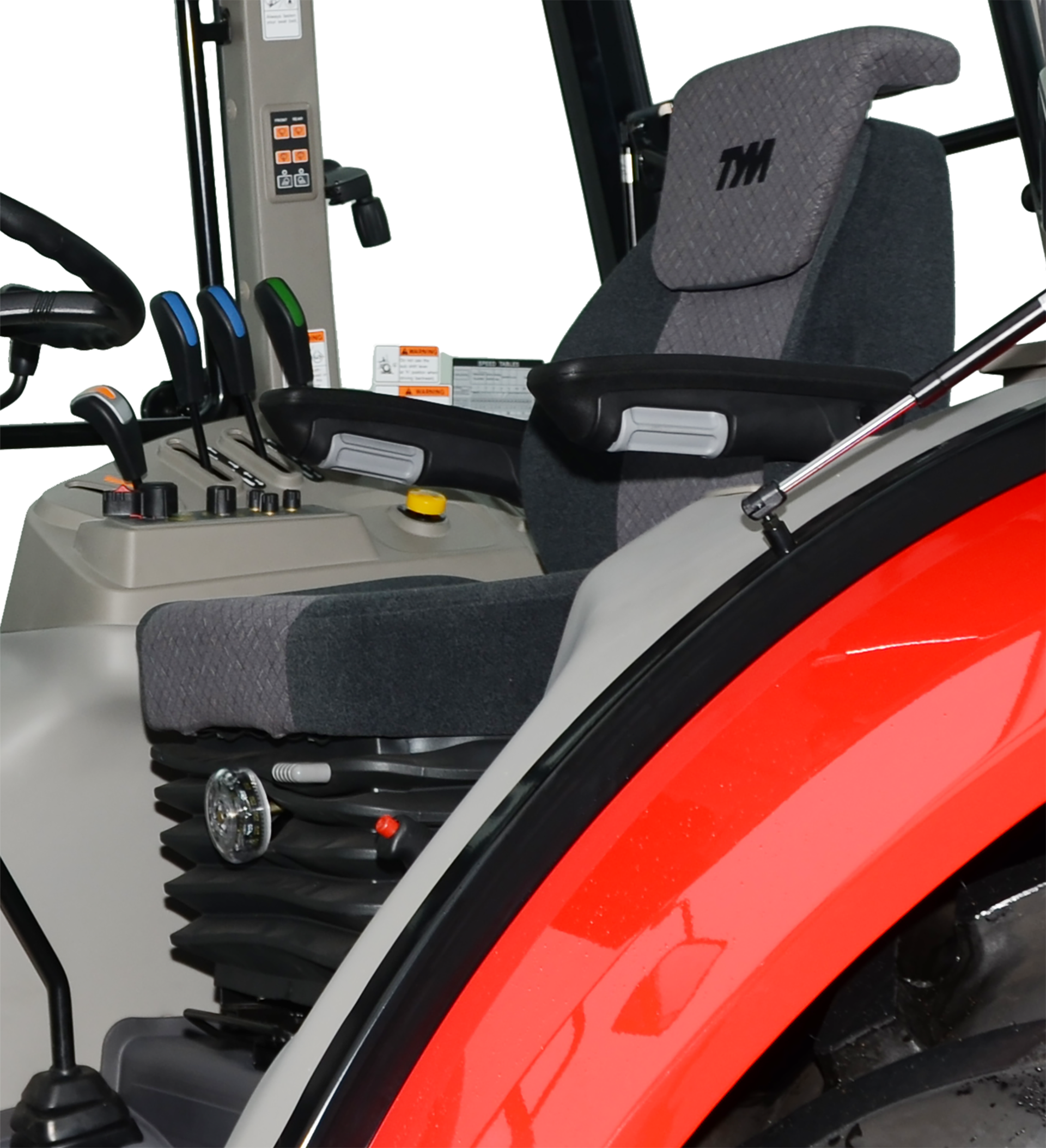

    TYM T1003 Adjustable Suspension Seat

    • Adjustable air suspension seat with arm and headrest for comfort

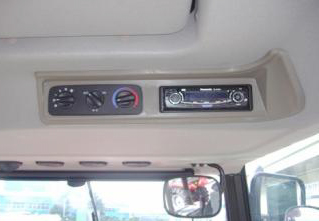

    TYM T1003 Air-con cabin

    • Air-conditioned cabin with heating
    • Radio/MP3/USB/SD Player
    • Internal and external rear vision mirrors

    TYM T1003 Wipers

    • Rear windscreen wiper & washer
    • Rear external cabin work lights

    MAINTENANCE

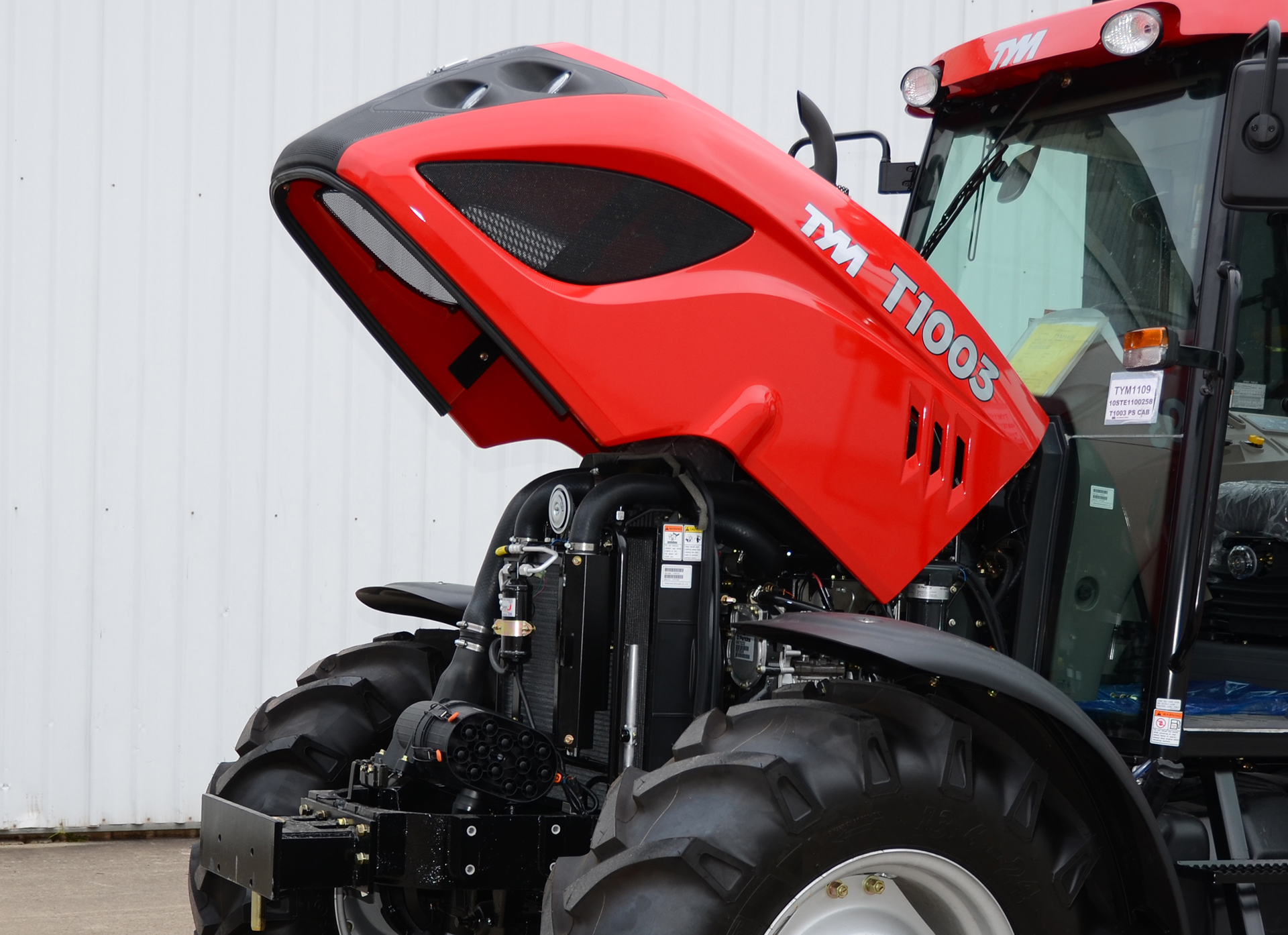

    TYM T1003 Easy Maintenance

    • Pop-up 1 piece bonnet
    • Easy access to all maintenance areas including battery
    • Radiator with removable screen to prevent clogging

    OPTIONS

    FRONT END LOADER

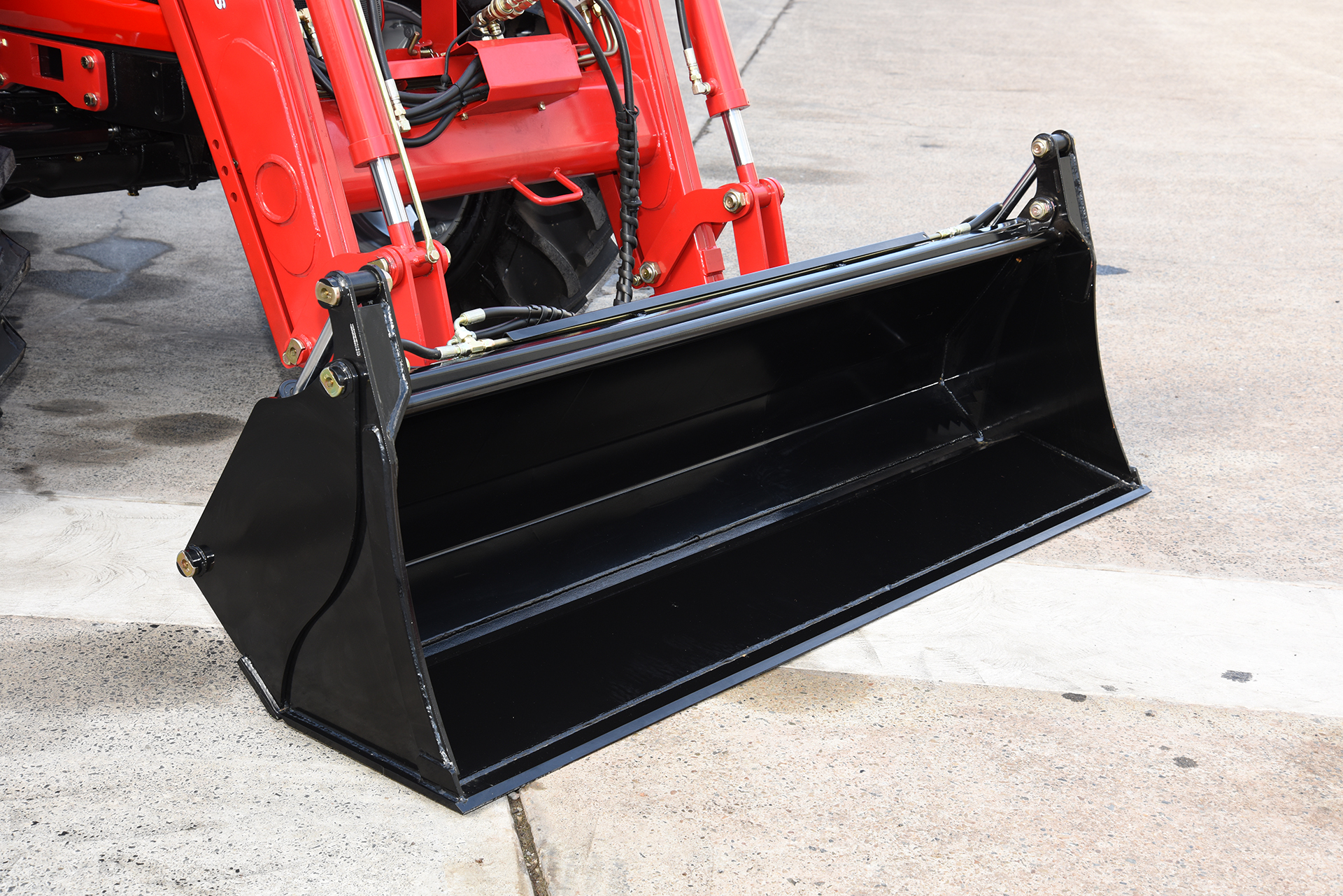

    TYM T1003 Optional Front End Loader

    • Level lift front-end loader ideal for materials handling and utility work around the farm
    • Euro hitch with quick release

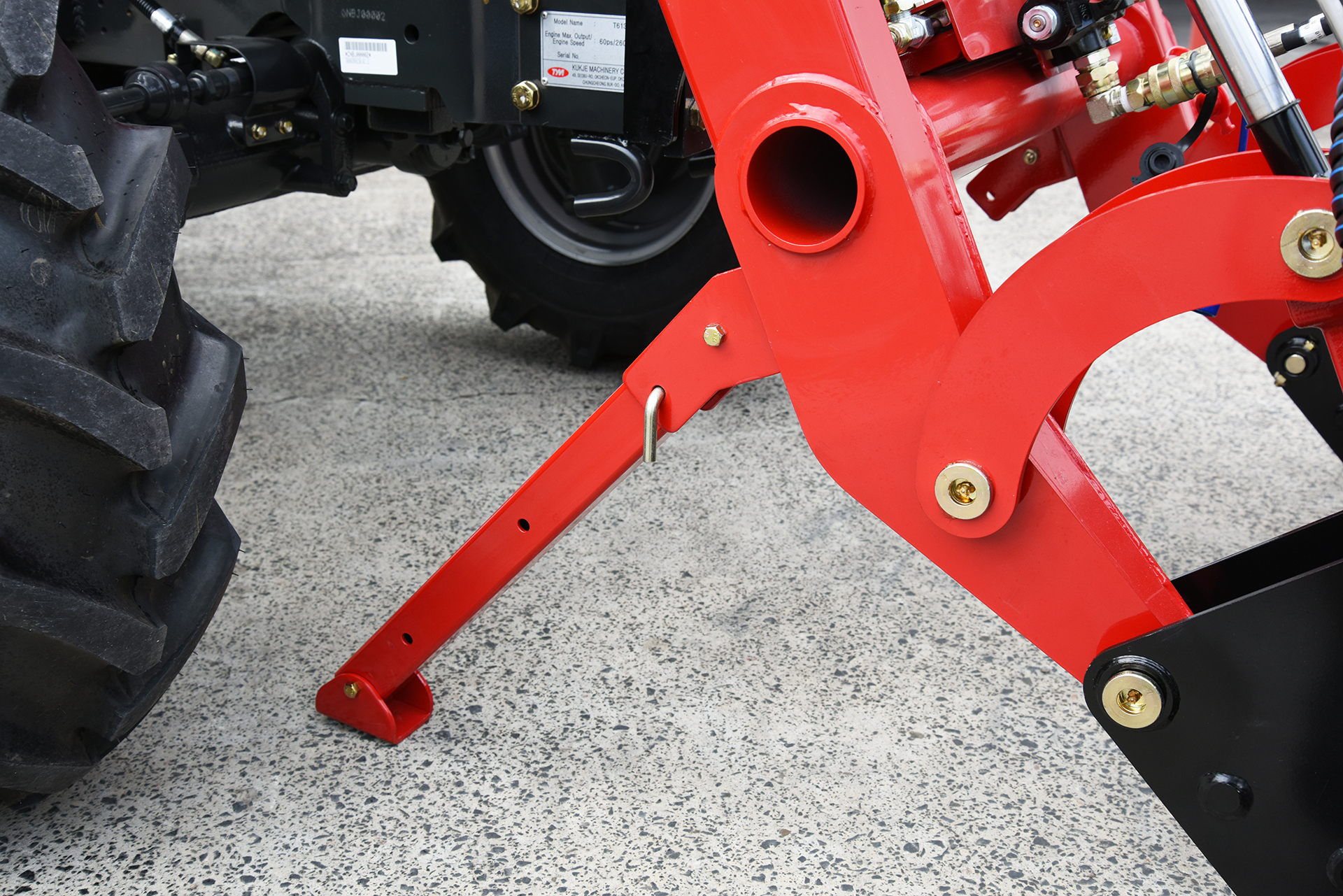

    TYM T1003 Optional Front End Loader Stand

    FRONT WEIGHT

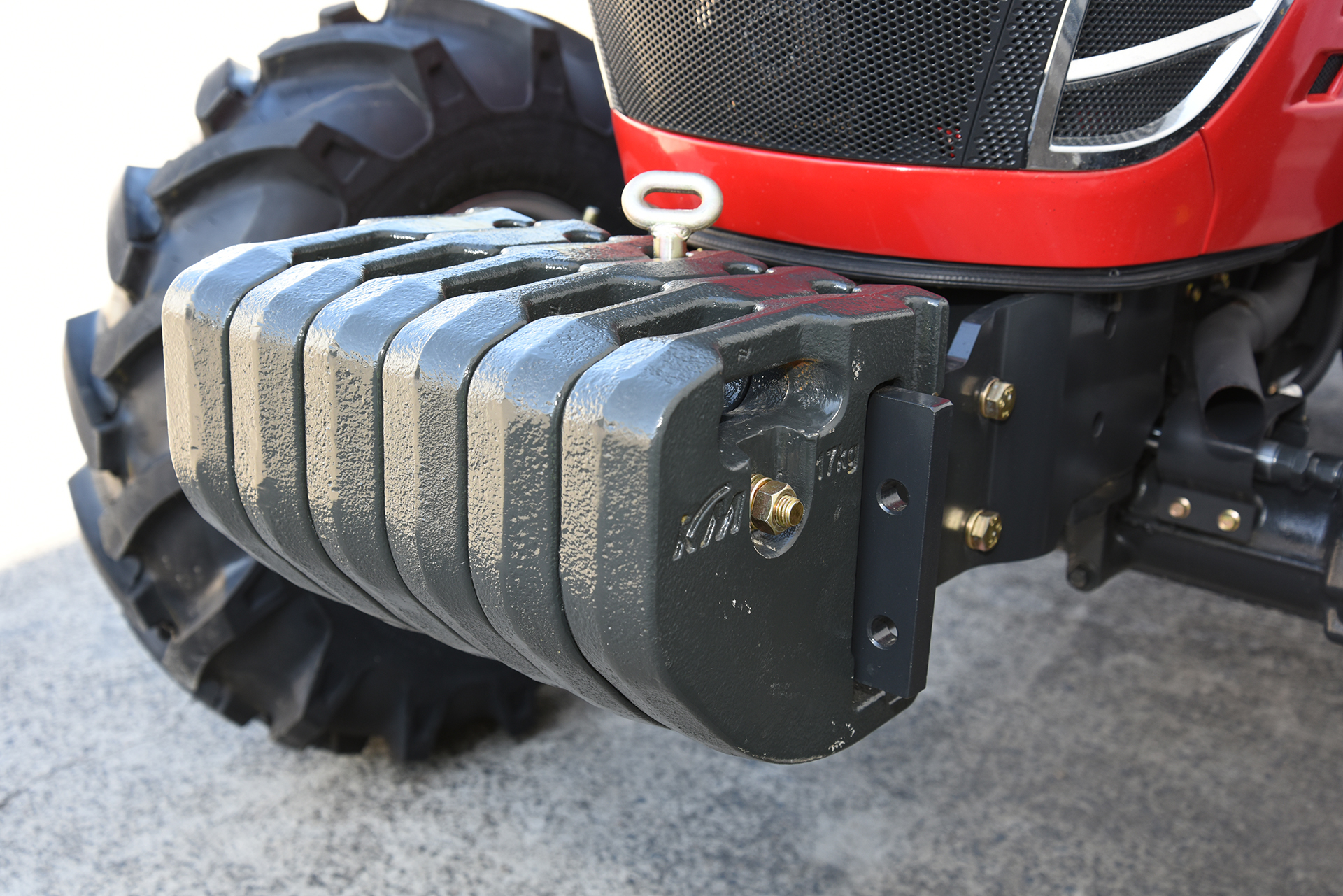

    TYM T1003 Front Weights

    • Optional front weights available

    FRONT MUDGUARDS

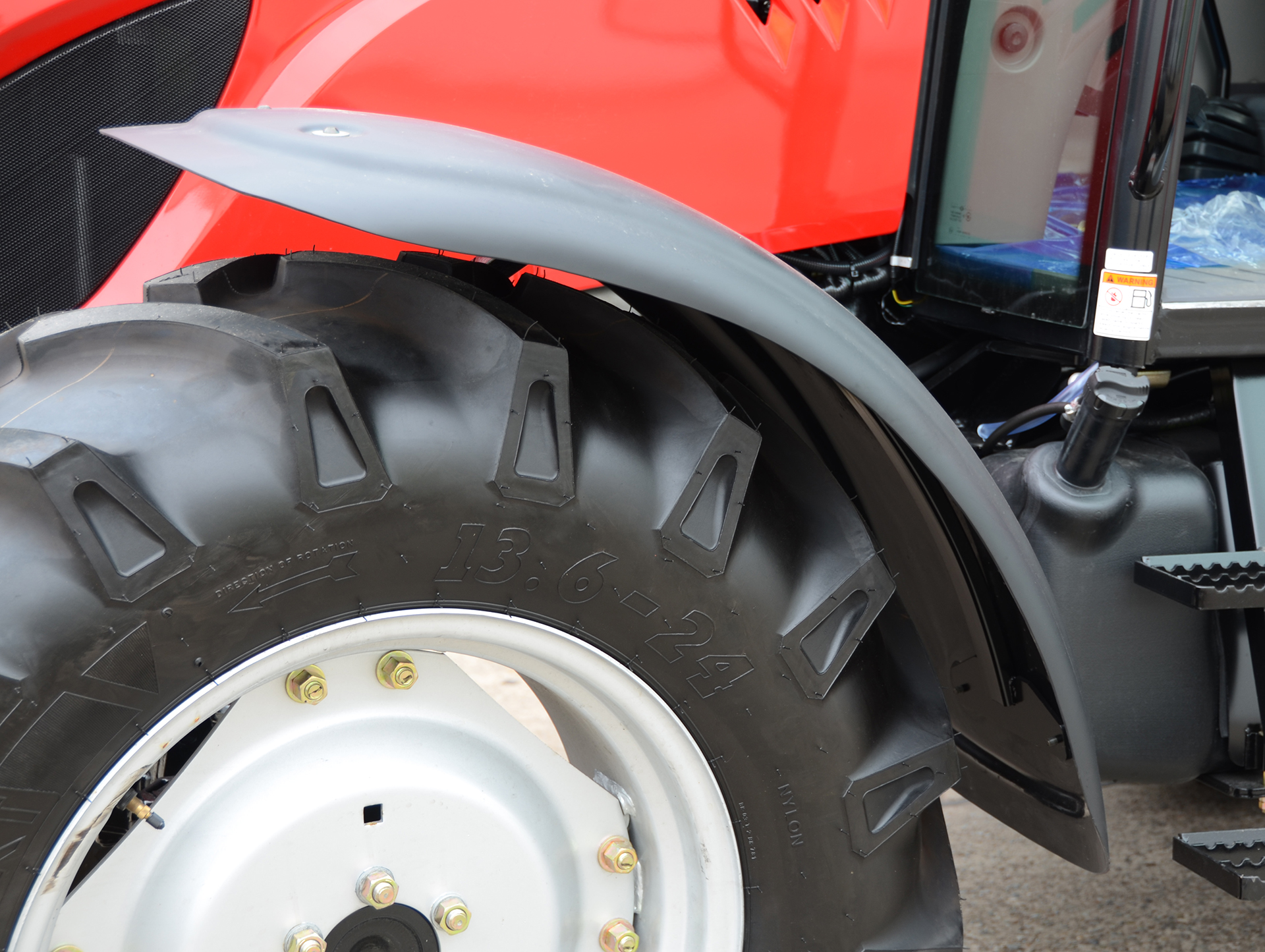

    TYM T1003 Front Mudguards

    • Optional front mudguards

    SPECIFICATIONS

    T1003
    Engine Type
    Perkins
    Number of Cylinders/cc
    4/4400
    Engine Power (hp/kW)
    99.5 / 74.5
    Transmission Speeds
    32x32
    Forward / Reverse Shuttle Type
    Power Shuttle
    Powershift
    Hi-Lo
    Number Speed Ranges
    4
    Speed Range at max rpm (km/h)
    0.4-40
    PTO Speeds (rpm)
    540 / 750 / 1000
    Independent Push Button PTO engagement
    Tick
    3-point Linkage Lift Capacity (kg)
    3110
    Number of Hydraulic Remotes
    3 sets
    Integrated Joystick Control for Front-end Loader
    Tick
    Weight - Tractor Only (kg)
    3685

    BROCHURE

    Click this link to download a brochure. Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.
