TYM Tractors

T313 Tractor


29hp hydrostatic transmission compact tractor.

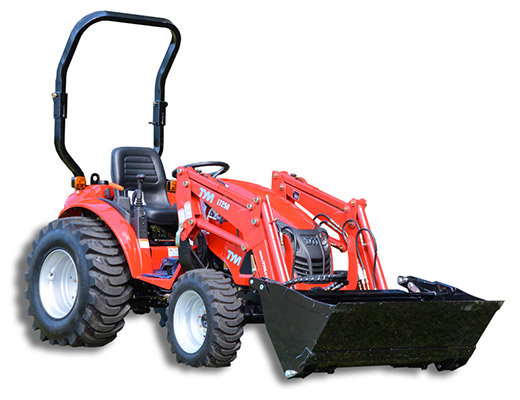

TYM T313 Tractor

Photograph for illustration purposes - standard specifications may not match those shown.

FEATURES OF THE TYM 'T313' TRACTOR

ENGINE

Mitsubishi Engine
  • Powered by 29hp Mitsubishi S3L2 naturally aspirated 3 cylinder water-cooled Diesel engine.
  • Mitsubishi Diesel is a global engine manufacturer of quality, giving you the confidence in relaibility and after-sales support.
  • Cruise control for tireless driving when mowing large areas.
  • Engine certified to meet the stringent Tier III engine and noise emission standards.
  • 1318cc, with 79Nm torque @ 2800RPM
  • Dual dry element air cleaner for Australia's dusty conditions.
  • A generous engine capacity of 1318cc, resulting in 79Nm torque for serious work
  • A large capacity 25 litre fuel tank for many working hours between refueling.

DRIVELINE

T313 Chassis
  • The tractor weight of 898kg is a reflection of theheavy duty transmission, driveline and axles. The tractor weight is in part, a result of the heavy front axle, which is important for a tractor fitted with a front end loader as substantial loads are applied during loader operation
  • The high efficiency Hydrostatic transmission gives infinitely variable drive speed in the forward and reverse direction
TYM T313 Foot Controls
  • The Hydrostatic drive controlled by Independent Forward and Reverse pedals for easy simple operation.
  • Hydrostatic power steering lightens steering especially important with front end loaders
  • Easy lever setting of Cruise control for tireless driving when mowing large areas
TYM T313 Rear Tyre
  • Industrial front and rear tyres are ideal for front-end loader applications
  • Large 25x8.5-14 Front tyres
  • Large 14-17.5 Rear tyres
TYM T313 Axle
  • The heavy duty front axle performs in tough working conditions and handles loads with ease
  • A long wheel base and wide stance increases stability in all conditions
TYM T313 4WD Lever
  • 4WD and the Diff Lock provides better traction, control and performance
  • 4WD mode is controlled by a lever on the left hand side of the operator
  • Rear axle with diff-lock for difficult traction situations
  • Inboard wet disc brakes with LHS-RHS brake splitting for brake assisted turning in tight situations

PTO, HYDRAULICS & LINKAGE

TYM T313 Rear Linkage
  • 1 set of double-acting hydraulic remotes.
  • Category 1 3-point linkage with manual position controls and 700kg lifting capacity gives the tractor great versatility and range of applications.
TYM T313 PTO
  • The PTO drive is a smiple and direct design for high efficiency and power
  • The PTO clutch is and imdependant oil immersed clutch pack for long life and simple operation

CONTROLS

TYM T313 Dash
  • Ergonomic design - easy to reach controls
  • Easy to read instrument panel
  • Combination S/W
  • Cruise Control
  • PTO On/Off Switch
TYM T313 Joystick
  • Fully integrated single joystick for controldelivers ergonomic operation of front end loader
  • Throttle lever is conveniently located adjacent to the steering wheel
  • 3 point linkage position lever
TYM T313 RHS Lever
  • 3 point Linkage position lever

LAYOUT

TYM T313 Tractor Access
  • Clean uncluttered access
TYM T313 Brake Steer
  • Steering brakes located on operator's left to improve turning in confined areas.

AUXILIARY HYDRAULIC VALVE

TYM T313 Tractor Auxiliary hydraulic valve
  • For the operation of log splitters

OPTIONS

Options
  • Level lift Front-end Loader ideal for materials handling and utility work around the small farm.

SPECIFICATIONS

T313
Engine Type Mitsubishi
Number of Cylinders 3
Engine Power (hp/kW) 29 / 21
Transmission Type Hydrostatic
Forward / Reverse Shuttle Type HST
Number Speed Ranges 2
Maximum Speed (km/h) 19
PTO Speeds (rpm) 540
Mid PTO Tick
Independent Push Button PTO engagement Tick
Steering brakes Tick
3-point Linkage Lift Capacity (kg) 700
Number of Hydraulic Remotes 1 set
Integrated Joystick Control for Front-end Loader Tick
Weight - Tractor Only (kg) 898


BROCHURE

Click this link to download a brochure. Please note that Australian specifications may vary to those shown on the manufacturer's brochure and website.
Follow this link to the manufacturer's website (Tong Yang Moolsan - Korea)
Disclaimer: Specifications and features described on the website are subject to change without notice. All care has been taken to present accurate information, however, the company is not liable for unintended errors or omissions.
